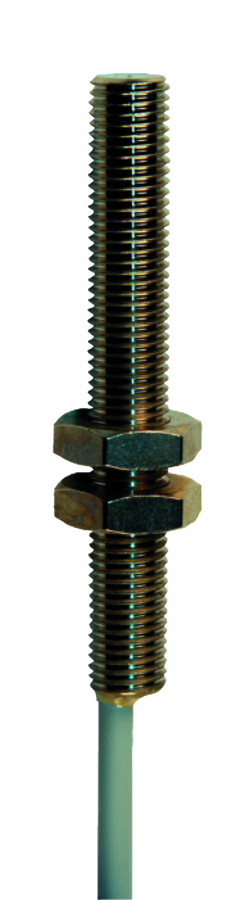

Magnetic sensor
RC 8
Metal enclosure
Long life
1 Reed contact
Actuation from front and from side

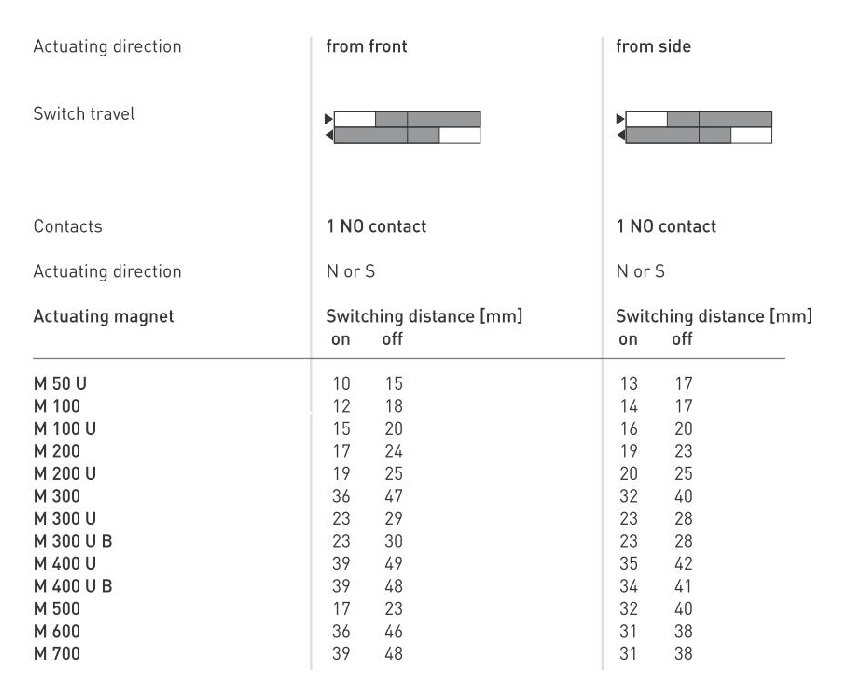

Switching distance up to 39 mm depending on the actuating magnet
With pre-wired cable
Notes
2 mounting nuts are included in delivery.
The actuator is not included in the delivery of the switches.
Loading...
Technical data
General technical data
- Applied standards
- EN IEC 60947-5-2
- Enclosure
- brass, nickeled
- Degree of protection
- IP67 (IEC/EN 60529)
- Actuating magnet
- series M permanent magnet
- Switching system
- reed contacts
- Switching elements
- 1 NO contact
- Connection
- cable LiYY 2 x AWG 26
- Cable cross-section
- 2 x 0.14 mm²
- Cable length
- 1 m
- Switching voltage
- max. 200 VAC/DC
- Switching current
- max. 1 A
- Switching capacity
- max. 20 W
- Ambient temperature
- –10 °C … +80 °C
- Mechanical life
- 109 operations
- Repeatability
- ± 0.02 mm
- Vibration resistance
- 20 g (10-2000 Hz)
- Shock resistance
- 50 g (11 ms, ½ sin)
