Magnetic sensor
RC 30
Thermoplastic enclosure
Long life
1 Reed contact
Actuation from front and from side

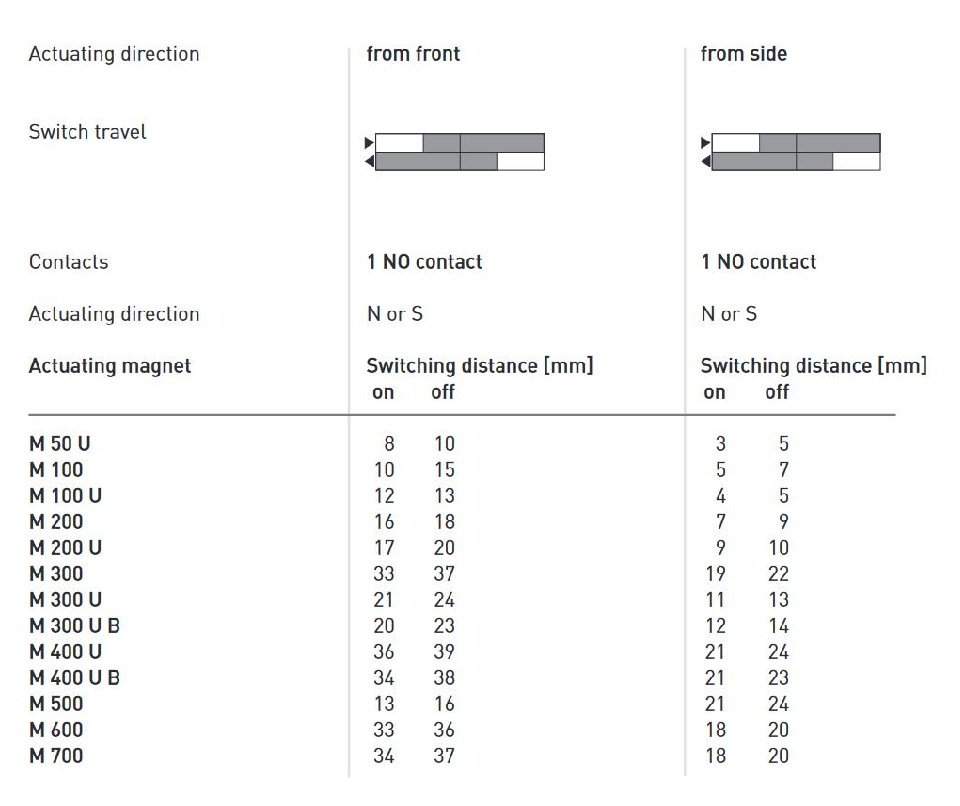

Switching distance up to 36 mm depending on the actuating magnet
With pre-wired cable
Notes
2 mounting nuts are included in delivery
The actuator is not included in the delivery of the switches
Loading...
Found 4 results
Product
Product
Product
Product
Loaded 4 from 4 results
Technical data
General technical data
Applied standards
EN IEC 60947-5-2
Enclosure
polyamide, glass-fibre reinforced
Degree of protection
IP67 (IEC/EN 60529)
Actuating magnet
series M permanent magnet
Switching system
reed contacts
Switching elements
NO contact or change-over contact
Connection
pre-wired cable PVC
Cable cross-section
1S: 2 x 0.5 mm², 1W: 3 x 0.5 mm²
Cable length
1, 2 or 5 m
Switching voltage
max. 250 VAC/DC
Switching current
max. 0.5 A
Switching capacity
1S: max. 50 W; 1W: max. 15 W
Ambient temperature
–10 °C … +80 °C
Mechanical life
109 operations
Repeatability
± 0.02 mm
