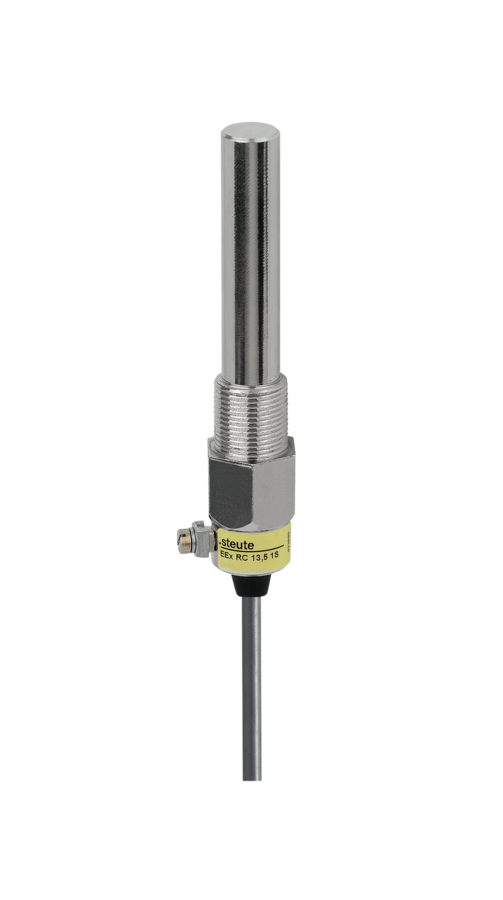

Ex magnetic sensor
Ex RC 13,5
Ex zone 1 and 21
Brass enclosure, nickeled
Actuation from front

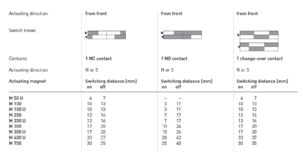

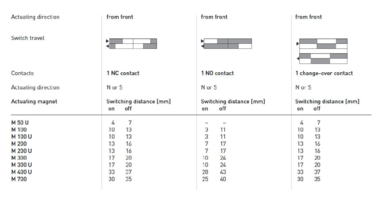

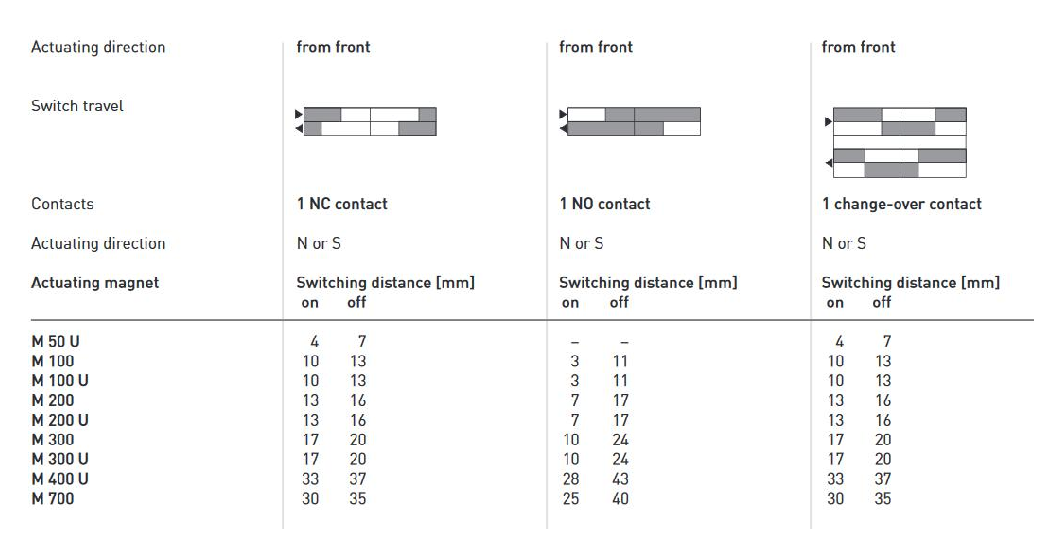

Switching distance up to 30 mm depending on the actuating magnet
With pre-wired cable
Attention: Please state required international approvals with your order!
2 mounting nuts are included in delivery
The actuator is not included in the delivery of the switches
Technical data
General technical data
Applied standards
EN IEC 60947-5-2, EN IEC 60079-0, EN 60079-18
Enclosure
brass, nickeled
Degree of protection
IP67 (IEC/EN 60529)
Actuating magnet
series M permanent magnet
Switching system
reed contacts
Switching elements
NC contact, NO contact or change-over contact
Connection
pre-wired cable H05VV-F or Ölflex Heat 125 (depending on the variant)
Cable cross-section
1S, 1Ö: 3 x 0.75 mm²
1W: 4 x 0.75 mm²
Cable length
2, 5 or 10 m
Switching voltage
max. 250 VAC/DC
Switching current
1Ö, 1W: max. 0.5 A DC / max. 0.35 A AC,
1S: max. 1.5 A
Short-circuit current Ik
1Ö, 1W: max. 2 A, 1S: max. 5 A
Switching capacity
1Ö, 1W: max. 30 W/VA, 1S: max. 100 W/VA
Ambient temperature
–20 °C … +70 °C,
on request: –40 °C … +70 °C
Mechanical life
> 1 million operations
Impact energy
max. 7 J
Ex marking
L II 2G Ex mb IIC T6 Gb,
L II 2D Ex mb IIIC T80 °C Db
IECEx Ex mb IIC T6 Gb
Ex mb IIIC T80 °C Db
Approvals
DMT 01 ATEX E 058 X
IECEx BVS 07.0007 X
f a
< on request
Ü on request
Downloads
Variants / Options
The following variants / options are available on request:
Cold-resistant version down to -40 °C
Special version only for gas Ex zone 2 and dust Ex zone 22
Maritime certification to DNV <
