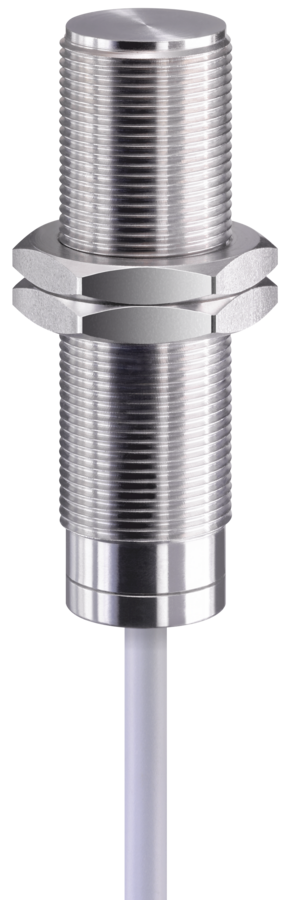

Inductive sensor

IS M18 full metal Extreme


  • Full metal housing stainless steel AISI 316L

  • High degree of protection IP69, IP69K

  • Flush mounting

  • Long life, no mechanical wear

  • Suitable for the food processing industry

  • Insensitive to soiling

  • With LED

  • M18 x 1 thread

  • With pre-wired cable or plug-in connector

Technical data

Applied standards

EN 60947-5-2

Enclosure

stainless steel AISI 316L full metal

Degree of protection

IP69 (IEC/EN 60529) / IP69K (ISO 20653)

Connection

cable PUR 4 x 0.25 mm² or plug-in connector M12 x 1

Switching elements

1 NO contact, NPN/PNP, 4-wire or PNP, 3-wire

Rated switching distance sn

5 mm

Correction factors

Steel (Fe360) = 1; Stainless steel approx. 0.7; Brass approx. 0.5; Aluminium approx. 0.4; Copper approx. 0.4

Rated operating voltage range UB

10 … 30 VDC

Residual ripple

≤ 10 %

Switching current

max. 0.2 A

Voltage drop at Ie

max. 1.8 V

Current absorption

< 2 mA at 24 VDC

Hysteresis

approx. 20 %

Switching frequency

50 Hz

Repeatability

≤ 1 %

Protection circuit

Inductive interference protection, protection against polarity reversal, short-circuit and overload proof

Ambient temperature

–25 °C … +70 °C

Downloads

EU Declaration of Conformity – IS M8 / M12 / M18 / M30 Extreme

German, English

PDF 975 KB 26.09.2023
UK Declaration of Conformity – IS M8 / M12 / M18 / M30 Extreme

German, English

PDF 985 KB 26.09.2023
Please go to the relevant product pages for additional downloads.
