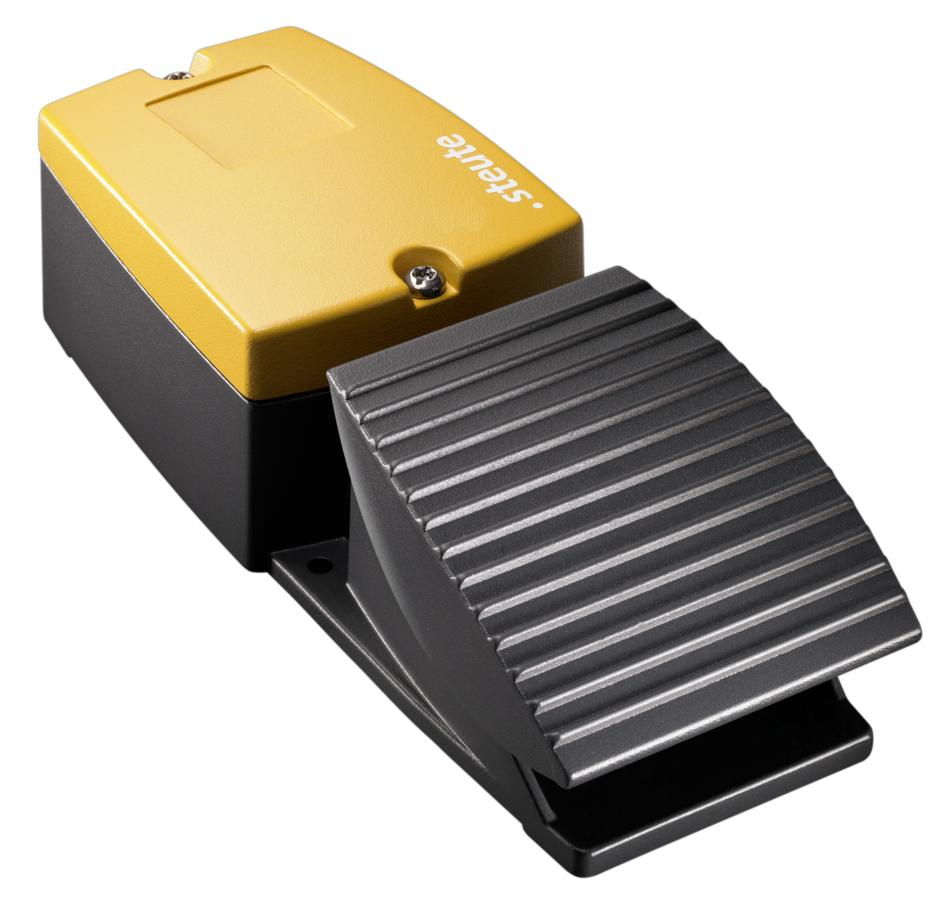

Foot switch with metal enclosure
GFI Extreme
Corrosion-resistant aluminium enclosure
Salt-mist spray test to DIN EN ISO 9227
High degree of protection IP66, IP67, IP69, IP69K depending on selected cable gland
Temperature resistant from -40 °C to +90 °C
Screws and metal parts made of stainless steel
Suitable for the food processing industry
Without protective shield
Max. 4 contacts
Attention: Please state required international approvals with your order!
Technical data
General technical data
Applied standards
EN 60947-5-1
Enclosure
aluminium die-cast, corrosion-resistant, powder-coated, passivated, anthracite grey, similar to RAL 7016
Cover
aluminium, corrosion-resistant, powder-coated, passivated, signal yellow, similar to RAL 1003
Pedal
aluminium die-cast, corrosion-resistant, hard-coated, powder-coated, anthracite grey, similar to RAL 7016
Degree of protection
IP66, IP67, IP69 (IEC/EN 60529) / IP69K (ISO 20653)
B10d (10 % load)
2 million
TM
max. 20 years
Connection
screw connection terminals
Cable cross-section
max. 2.5 mm² (incl. conductor ferrules)
Cable entry
1 x M20 x 1.5
Contact material
silver
Switching system
slow action, positive break NC contacts A
Switching elements
1 NC/1 NO contact or 2 NC/2 NO contacts, type Zb
Utilisation category
AC-15
Ambient temperature
–40 °C … +90 °C
Mechanical life
> 1 million operations
Approvals
d a
