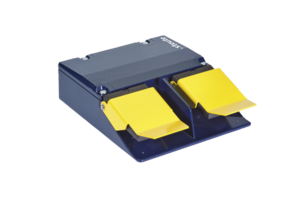

Foot switch with metal enclosure
GF 2
Metal enclosure
Without protective shield
Wiring compartment
2-pedal type
Low pedal height
Loading...
Found 10 results
Product
Product
Product
Standard Version
Product
Product
Product
Product
Foot switch with metal enclosure
GF 2 POTI 1K 1PW/1K 1PW
Article no. 1184063
Product
Foot switch with metal enclosure
GF 2 POTI 2K 1PW/2K 1PW
Article no. on request
Product
Product
Loaded 10 from 10 results
Technical data
General technical data
- Applied standards
- EN 60947-5-1
- Enclosure
- aluminium die-cast, powder-coated, RAL 7016
- Cover
- aluminium die-cast, powder-coated, RAL 1003
- Pedal
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Degree of protection
- IP65 (IEC/EN 60529)
- Connection
- screw connection terminals
- Cable entry
- 1 x M25 x 1.5
- Switching system
- slow or snap action
- Ambient temperature
- –25 °C … +80 °C
- Mechanical life
- > 1 million operations
- Approvals
- d
a *
* depending on the variant
Downloads
Variants / Options
The following variants / options are available on request:
Other contact combinations
Special finish in RAL colour tones
