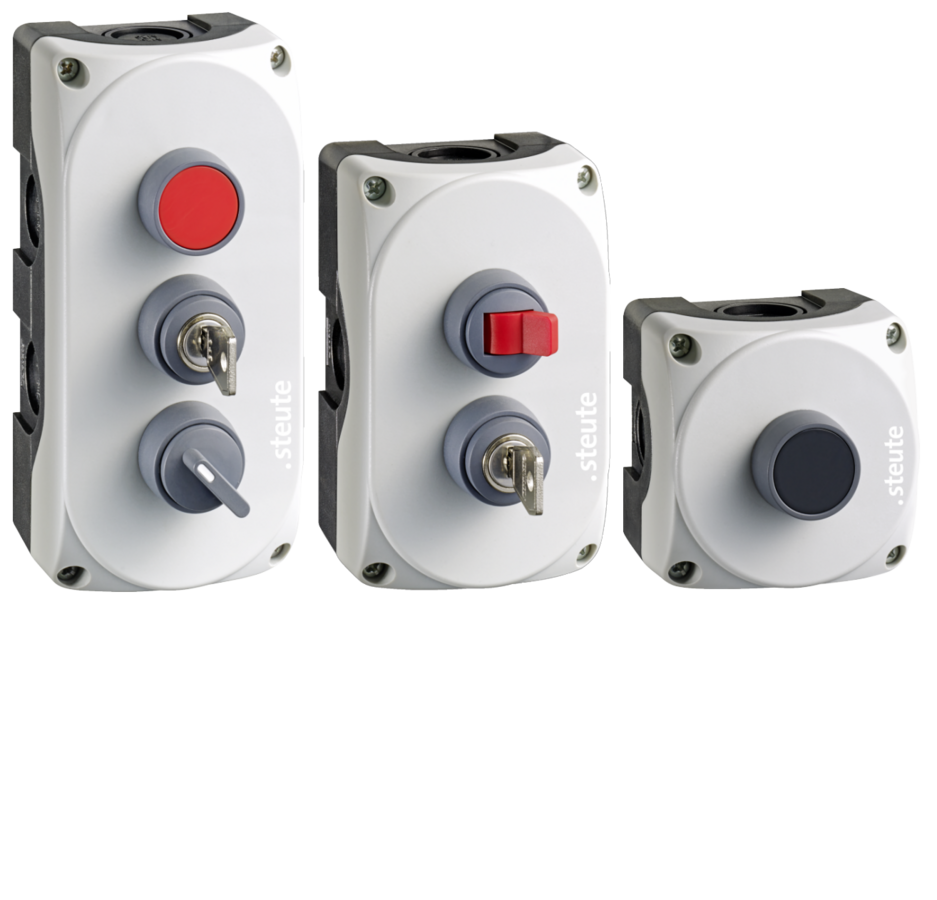

Wireless command device
RF BF 74
Thermoplastic enclosure
sWave® wireless technology (SW868/SW915/SW917)
No power supply, no wiring and pipe laying required
Easy programming of receiver
Output signal can be individually configured at the receiver

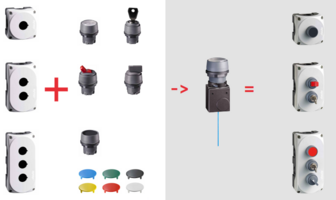

For this series, enclosures and actuators must be ordered separately!
Technical data
General technical data
Applied standards
EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, EN 61000-4-2, EN 301 489-1, EN 301 489-3, EN 300 220-1, EN 300 220-2
Enclosure
polycarbonate
Tightening torque
cover screws: approx. 1.6 Nm
Degree of protection
IP65 to IEC/EN 60529 (RTM: IP67), use only with enclosure for command devices
Voltage source
electrodynamic energy generator
Ambient temperature
–20 °C … +65 °C
Telegram rate
max. 12000 telegrams with repetitions/h
Wireless range
max. 450 m outdoors, max. 40 m indoors
Mechanical life
800 000 operations
Actuating time
min. 80 ms
Actuating speed V
min. 0.03 m/s; max. 0.25 m/s
Note
no status signal available
Wireless approvals
Europe: RED 2014/53/EU
USA: FCC - XK5-RF95SW915LR
Canada: IC - 5158A-RF95SW915LR
Mexico: IFT - RCPSTRF17-1884
Brazil: ANATEL 04580-18-06718
