Anti-two-block switch
ZS 73 2Ö W HES 130N -40°C Niro hard-coated Extreme
Article no.: on request
This product is only available on request, please contact our sales team. contact usProduct features
Pull-wire unit made of stainless steel 1.4404, hard-coated housing, cover made of stainless steel 1.4404, screws A2
Cold-resistant down to -40 °C
High degree of protection IP66 / IP67
Metal enclosure
2 contacts
Positive break NC contacts similar to GS-ET-15, 5.13.2
Watertight collar W for protection against penetration of dirt

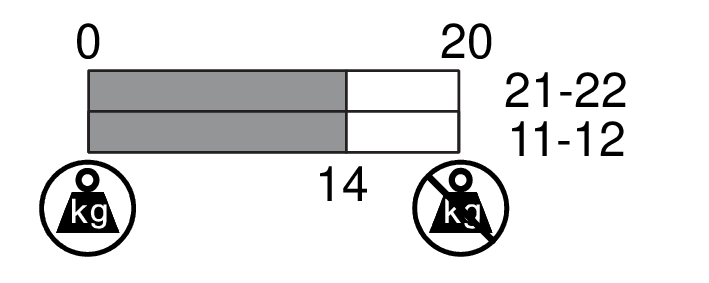

Tractive force 130 N (counterweight of min. 13 kg to pretension anti-two-block switch)
For limiting the hoist height
Attention: Please state required international approvals with your order!
Technical data
General technical data
Applied standards
EN 60947-5-1
Enclosure
aluminium die-cast, hard-coated, powder-coated, anthracite grey, similar to RAL 7016
Cover
stainless steel 1.4404, powder-coated, signal yellow, similar to RAL 1003
Degree of protection
IP66/IP67 (IEC/EN 60529)
B10d (10 % load)
200 000
TM
max. 20 years
Contact material
silver, gold-plated
Switching system
snap action, positive break NC contacts similar to GS-ET-15, 5.13.2

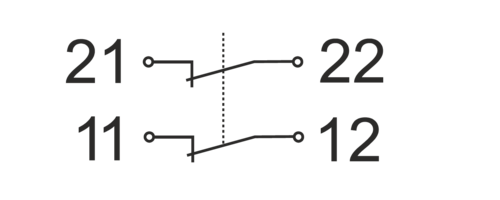

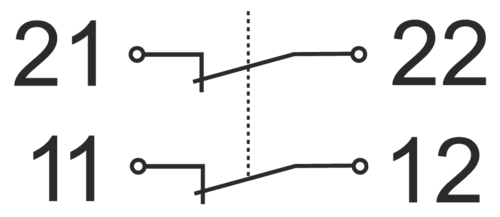

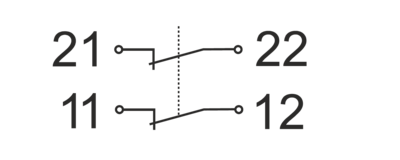

Switching elements
2 NC contacts
Connection
screw connection terminals
Cable cross-section
max. 2.5 mm² (incl. conductor ferrules)
Cable entry
1 x M16 x 1.5
Rated impulse withstand voltage Uimp
6 kV
Rated insulation voltage Ui
400 V
Conventional thermal current Ithe
6 A
Utilisation category
AC-15
Rated operating current/voltage Ie/Ue
6 A/400 VAC
Short-circuit protection
6 A gG/gN fuse
Ambient temperature
–40 °C … +70 °C
Mechanical life
> 100 000 operations
Weight
981 g
