Product features
Metal enclosure
2 contacts
Without mechanical latching
Belt-alignment roller made of stainless steel 1.4104
Mid-position centered (lever springs back to mid-position)
Belt alignment lever adjustable in 12° steps using a self-locking mechanism
Technical data
General technical data
- Applied standards
- EN 60947-5-1, EN ISO 13849-1
- Enclosure
- aluminium die-cast, enamel finish
- Cover
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Degree of protection
- IP65 (IEC/EN 60529)
- B10d (10 % load)
- 2 million
- TM
- max. 20 years
- Contact material
- silver
- Switching elements
- 1 NC/1 NO contact
- Switching system
- snap action, positive break NC contacts A
- Connection
- screw connection terminals
- Cable cross-section
- max. 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 2 x M20 x 1.5
- Rated impulse withstand voltage Uimp
- 6 kV
- Rated insulation voltage Ui
- 400 V
- Conventional thermal current Ithe
- 6 A
- Utilisation category
- AC-15
- Rated operating current/voltage Ie/Ue
- 6 A/400 VAC
- Short-circuit protection
- 6 A gG/gN fuse
- Ambient temperature
- –25 °C … +70 °C
- Mechanical life
- > 1 million operations
- Approvals
- da
- Weight
- 1300 g
Dimensional drawing
Further drawings

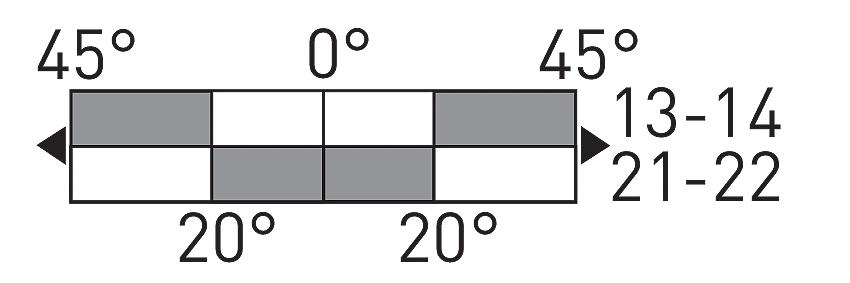

Switching diagram
Contact diagram
