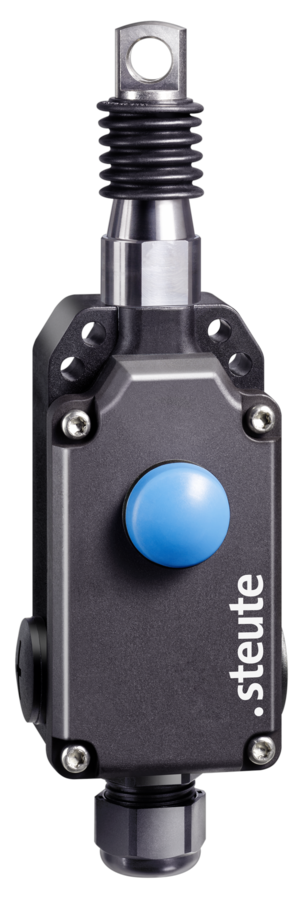

Emergency pull-wire switch
ZS 71 2Ö/1S WVD / 100N KST IP69 NIRO Extreme
Article no.: 1189534Old article no.: 71942914
contact usProduct features
Version with higher degree of protection IP69: suitable for cleaning with 80 °C hot water at 100 bar pressure at a distance of 100 mm from different directions
Pull-wire unit and screws made of stainless steel 1.4305 (NIRO)
Thermoplastic enclosure
3 contacts
Compact design
Wire length up to 35 m
Spring force variant: 100 N
Release by push button (VD)
Watertight collar W for protection against penetration of dirt
Wire pull and breakage detection
Attention: Please state required international approvals with your order!
Notes
1 cable gland M20x1.5 - IP 69 included in delivery
At 3 m distance intermediate wire supports are required. One wire thimble is provided.
Technical data
General technical data
Applied standards
EN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1
Enclosure
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Cover
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Degree of protection
IP66, IP67, IP69 (IEC/EN 60529) / IP69K (ISO 20653)
B10d (10 % load)
100 000
TM
max. 20 years
Contact material
silver
Switching system
snap action, positive break NC contacts A

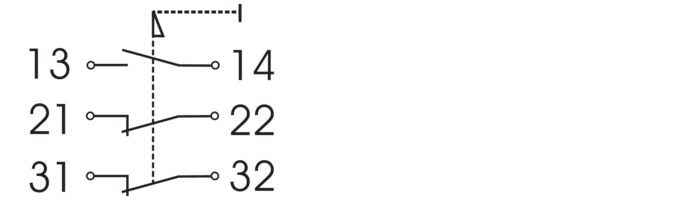

Switching elements
2 NC/1 NO contact, type Zb
Connection
screw connection terminals
Cable cross-section
min. 0.5 mm², max. 2.5 mm² (incl. conductor ferrules)
Stripping length
6 mm
Cable entry
3 x M20 x 1.5
Rated impulse withstand voltage Uimp
6 kV
Rated insulation voltage Ui
400 V
Conventional thermal current Ithe
2 A
Utilisation category
AC-15
Rated operating current/voltage Ie/Ue
2 A/250 VAC
Short-circuit protection
2 A gG/gN fuse
Ambient temperature
–25 °C … +70 °C
Mechanical life
> 100 000 operations
Max. wire length
35 m
Approvals
da
Weight
296 g
