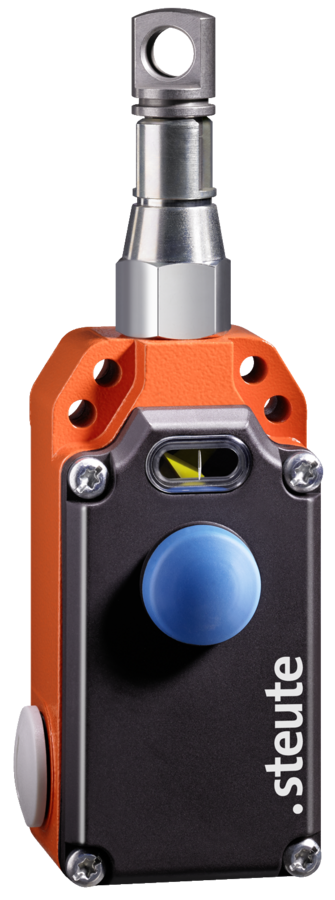

Emergency pull-wire switch
ZS 71 2Ö/1S VD-A / 100 N
Article no.: 1187956Old article no.: 71941903
contact usProduct features
Metal enclosure
3 contacts
Compact design
Wire length up to 35 m
Spring force variant: 100 N
Release by push button (VD)
Wire pull and breakage detection
Position indicator A
Notes
At 3 m distance intermediate wire supports are required. One wire thimble is provided.
Technical data
General technical data
Applied standards
EN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1
Enclosure
aluminium die-cast, powder-coated
Cover
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Degree of protection
IP65 (IEC/EN 60529)
B10d (10 % load)
100 000
TM
max. 20 years
Contact material
silver
Switching system
snap action, positive break NC contacts A
Switching elements
2 NC/1 NO contact, type Zb
Connection
screw connection terminals
Cable cross-section
min. 0.5 mm², max. 2.5 mm² (incl. conductor ferrules)
Stripping length
6 mm
Cable entry
2 x M20 x 1.5
Rated impulse withstand voltage Uimp
6 kV
Rated insulation voltage Ui
400 V
Conventional thermal current Ithe
2 A
Utilisation category
AC-15
Rated operating current/voltage Ie/Ue
2 A/250 VAC
Short-circuit protection
2 A gG/gN fuse
Ambient temperature
–25 °C … +70 °C
Mechanical life
> 100 000 operations
Max. wire length
35 m
Approvals
ßda
Weight
360 g
