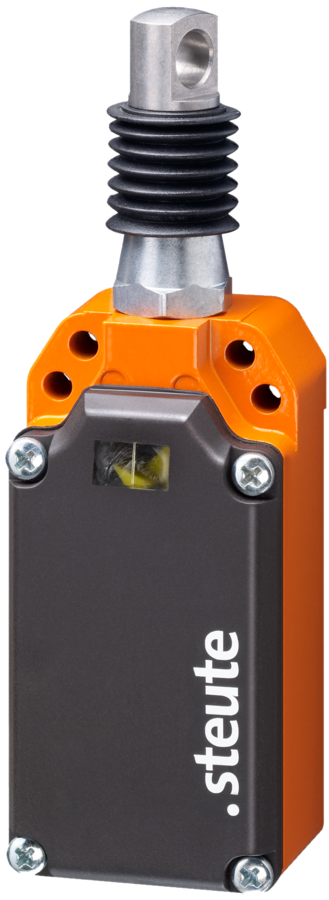

Product features
Metal enclosure
2 contacts
Compact design
Wire length up to 20 m
Spring force variant: 200 N
Wire pull and breakage detection
Position indicator A
Watertight collar W for protection against penetration of dirt
Without mechanical latching
Notes
At 3 m distance intermediate wire supports are required. One wire thimble is provided.
Technical data
General technical data
Applied standards
EN 60947-5-1, EN ISO 13849-1, GS-ET-15
Enclosure
aluminium die-cast, powder-coated
Cover
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Degree of protection
IP65 (IEC/EN 60529)
B10d (10 % load)
2 million
TM
max. 20 years
Contact material
silver
Switching system
snap action, positive break NC contacts A
Switching elements
1 NC/1 NO contact
Connection
screw connection terminals
Cable cross-section
max. 2.5 mm² (incl. conductor ferrules)
Cable entry
2 x M20 x 1.5
Rated impulse withstand voltage Uimp
6 kV
Rated insulation voltage Ui
400 V
Conventional thermal current Ithe
6 A
Utilisation category
AC-15
Rated operating current/voltage Ie/Ue
6 A/400 VAC
Short-circuit protection
6 A gG/gN fuse
Ambient temperature
–25 °C … +70 °C
Mechanical life
> 1 million operations
Max. wire length
20 m
Approvals
da
Weight
360 g
