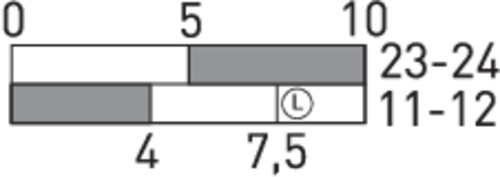

Contact diagram
Standard version

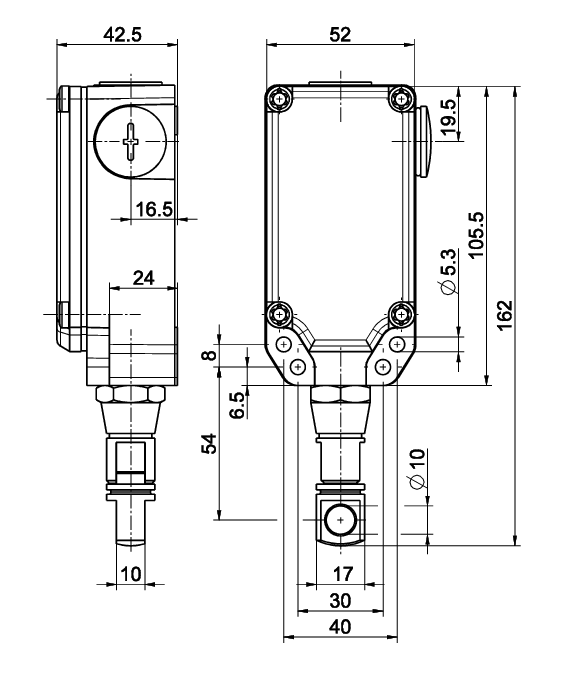

Pull-wire switch

ZS 71 1Ö/1S RE / Z

Article no.: 1052373Old article no.: 71041901

contact us

Product features

  • Metal enclosure

  • Wall mounting

  • Slow action: 2 contacts

  • Pull-wire function with latching

Technical data

Applied standards

EN 60947-5-1

Enclosure

aluminium die-cast, powder-coated

Cover

thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0

Degree of protection

IP65 (IEC/EN 60529)

Contact material

silver

Switching elements

1 NC/1 NO contact, type Zb

Switching system

slow action, positive break NC contacts A

Connection

screw connection terminals

Cable cross-section

max. 2.5 mm² (incl. conductor ferrules)

Cable entry

2 x M20 x 1.5 (for cable glands only)

Rated impulse withstand voltage Uimp

4 kV

Rated insulation voltage Ui

400 V

Conventional thermal current Ithe

4 A

Utilisation category

AC-15

Rated operating current/voltage Ie/Ue

4 A/400 VAC

Short-circuit protection

4 A gG/gN fuse

Ambient temperature

–25 °C … +70 °C

Mechanical life

> 1 million operations

Actuating force

max. 100 N

Approvals

da

Weight

387 g
