Product features
Thermoplastic enclosure
Wall mounting
Mounting details to EN 50041
Snap action
Pull-wire function
Notes
One wire thimble is provided.
Technical data
General technical data
- Applied standards
- EN 60947-5-1
- Enclosure
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Cover
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Degree of protection
- IP67 (IEC/EN 60529)
- Contact material
- silver
- Switching elements
- 1 NC/1 NO contact, type Zb
- Switching system
- snap action, positive break NC contacts A
- Connection
- screw connection terminals
- Cable cross-section
- max. 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 1 x M20 x 1.5 (for cable glands only)
- Rated impulse withstand voltage Uimp
- 6 kV
- Rated insulation voltage Ui
- 400 V
- Conventional thermal current Ithe
- 6 A
- Utilisation category
- AC-15
- Rated operating current/voltage Ie/Ue
- 6 A/400 VAC
- Short-circuit protection
- 6 A gG fuse
- Ambient temperature
- –10 °C … +70 °C
- Mechanical life
- > 1 million operations
- Operation cycles
- max. 1800/h
- Actuating force
- max. 85 N
- Approvals
- da
- Weight
- 240 g

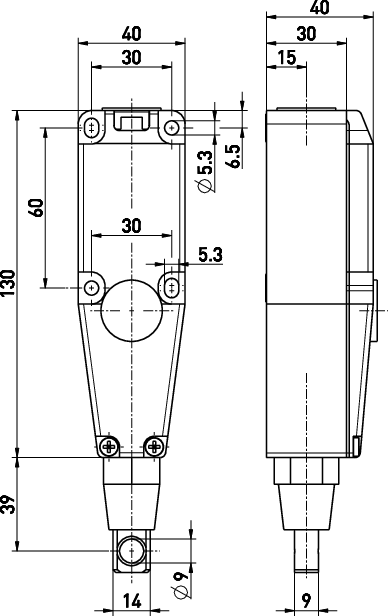

Dimensional drawing
Further drawings
Switching diagram

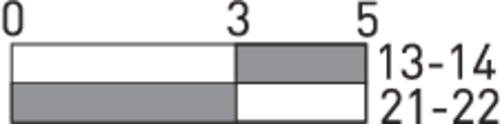

Contact diagram
