Contact diagram LEDs

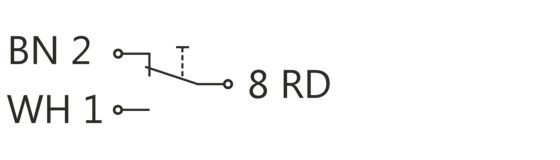

Contact diagram enabling push-button
Plug-in configuration (view from plug side)
Contact diagram start push-button
Standard version

Multi-function handle

TG-W GR x S

Article no.: 1051476Old article no.: 97755904

contact us

Product features

  • Thermoplastic handle

  • Long life

  • Grey start push button: 1 NO contact

  • Green and red LED

  • Green enabling push button: 1 change-over contact

  • With plug-in connector M12 x 1, 8-pole

Technical data

Applied standards

EN 60947-5-1

Enclosure

POM, glass-fibre reinforced, shockproof

Degree of protection

IP65 (IEC/EN 60529)

Connection

Plug-in-connector M12 x 1, 12-poles

Rated operating current/voltage Ie/Ue

0.5 A/24 VDC; LEDs: 10 mA/24 VDC

Rated insulation voltage Ui

30 VDC

Rated switching capacity

max. 0.6 W

Degree of pollution

3

Mechanical life

> 1 million operations

Ambient temperature

–25 °C … +55 °C

Weight

340 g

Downloads

Mounting and wiring instructions – TG / TGM

German, English, French, Italian, Portuguese

PDF3 MB 02.05.2025
