Product features
Thermoplastic handle
Long life
Blue start push button: 1 NO contact
Green and red LED
Green enabling push button: single-break change-over contact
With plug-in connector M12 x 1, 8-pole
Technical data
General technical data
- Applied standards
- EN 60947-5-1
- Enclosure
- POM, glass-fibre reinforced, shockproof
- Degree of protection
- IP65 (IEC/EN 60529)
- Connection
- Plug-in-connector M12 x 1, 12-poles
- Rated operating current/voltage Ie/Ue
- 0.5 A/24 VDC; LEDs: 10 mA/24 VDC
- Rated insulation voltage Ui
- 30 VDC
- Rated switching capacity
- max. 0.6 W
- Degree of pollution
- 3
- Safety class
- III
- Mechanical life
- > 1 million operations
- Ambient temperature
- –25 °C … +55 °C
- Weight
- 440 g

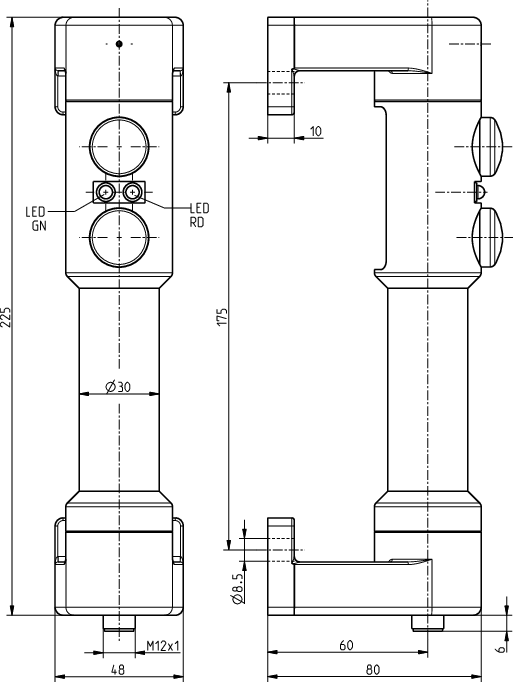

Dimensional drawing
Further drawings
Contact diagram LEDs
Contact diagram enabling push-button
Pin assignment (view from plug side)
Contact diagram start push-button
