Multi-function handle

TG-W GR 2Ö x

Article no.: 1173560Old article no.: 97755914

Standard version
contact us

Product features

  • Thermoplastic handle

  • Long life

  • Variant for left-hinged doors

  • Emergency-stop push button to EN 60947-5-5: 2-channel A

  • Green and red LED

  • Green enabling push button: single-break change-over contact

  • With plug-in connector M12 x 1, 12-pole

Technical data

Applied standards
EN 60947-5-1, EN 60947-5-5
Enclosure
POM, glass-fibre reinforced, shockproof
Degree of protection
in installation position: IP54 (IEC/EN 60529)
B10d (10 % load)
100 000
TM
max. 20 years
Connection
Plug-in-connector M12 x 1, 12-poles
Rated operating current/voltage Ie/Ue
0.5 A/24 VDC; LEDs: 10 mA/24 VDC
Rated insulation voltage Ui
30 VDC
Degree of pollution
3
Mechanical life
> 50 000 operations
Ambient temperature
–25 °C … +55 °C
Safety class
III
Weight
580 g

Dimensional drawing

Further drawings

Contact diagram LEDs

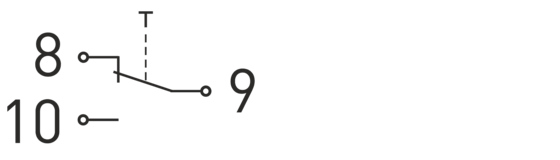

Contact diagram enabling push-button

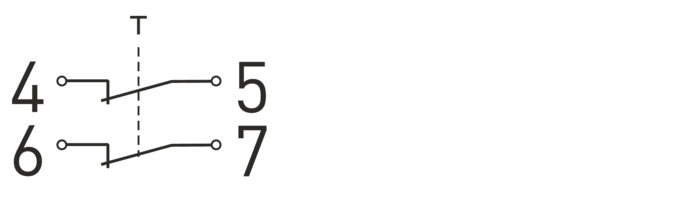

Contact diagram emergency-stop push-button
Pin assignment (view from plug side)

Downloads

Mounting and wiring instructions – TG / TGM

German, English, French, Italian, Portuguese

PDF3 MB 13.11.2025
