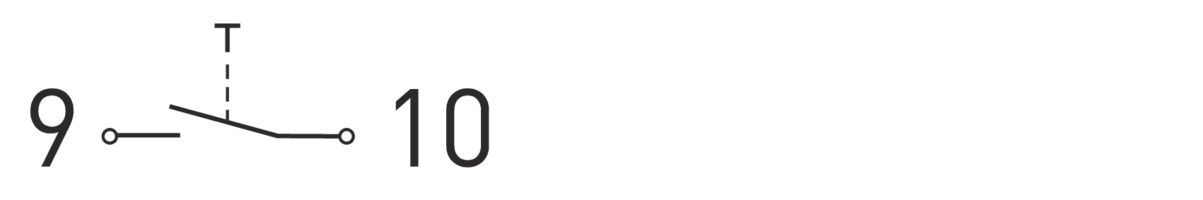

Contact diagram start push-button
Contact diagram start push-button
Contact diagram emergency-stop push-button
Plug-in configuration (view from plug side)
Standard version

Multi-function handle

TG-S GR 2Ö SR

Article no.: 1051805Old article no.: 97955903

contact us

Product features

  • Thermoplastic handle

  • Long life

  • Emergency-stop push button to EN 60947-5-5: 2-channel A

  • Red illuminated start push button: 1 NO contact

  • Green and red LED

  • Green enabling push button: 1 NO contact

  • With plug-in connector M12 x 1, 12-pole

Technical data

Applied standards

EN 60947-5-1, EN 60947-5-5

Enclosure

POM, glass-fibre reinforced, shockproof

Degree of protection

in installation position: IP54 to IEC/EN 60529

B10d (10 % load)

100 000

TM

max. 20 years

Connection

Plug-in-connector M12 x 1, 12-poles

Rated operating current/voltage Ie/Ue

0.5 A/24 VDC; LEDs: 10 mA/24 VDC

Rated insulation voltage Ui

30 VDC

Degree of pollution

3

Mechanical life

> 50 000 operations

Ambient temperature

–25 °C … +55 °C

Weight

360 g

Downloads

Mounting and wiring instructions – TG / TGM

German, English, French, Italian, Portuguese

PDF3 MB 02.05.2025
