Safety switch with separate actuator
ST 14 2Ö/1S - 5m
Article no.: 1188893Old article no.: 14953003
Standard version
contact us
Product features
Thermoplastic enclosure
With pre-wired cable
Notes
The actuator is not included in the delivery of the switches.
Technical data
General technical data
- Applied standards
- EN 60947-5-1, EN ISO 13849-1, EN ISO 14119
- Enclosure
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Switch type
- type 2
- Coding level
- low coding
- Tightening torque
- enclosure mounting screws: max. 1.5 Nm
- Degree of protection
- IP67 (IEC/EN 60529)
- B10d (10 % load)
- 2 million
- TM
- max. 20 years
- Contact material
- silver
- Switching system
- slow action, positive break NC contacts A
- Switching elements
- 2 NC/1 NO contact, type Zb
- Connection
- cable 6 x AWG 20
- Cable length
- 5 m
- Cable diameter
- 6.1 mm ±3%
- Cable cross-section
- 6 x 0.56 mm²
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated insulation voltage Ui
- 250 V
- Conventional thermal current Ithe
- 6 A
- Rated operating current/voltage Ie/Ue
- 3 A/250 VAC; 2 A/24 VDC; 0.125 A/230 VDC
- Utilisation category
- AC-15; DC-13
- Short-circuit protection
- 6 A gG/gN fuse
- Safety class
- II
- Positive break travel
- 8 mm
- Ambient temperature
- –20 °C … +75 °C
- Mechanical life
- > 1 million operations
- Weight
- 380 g

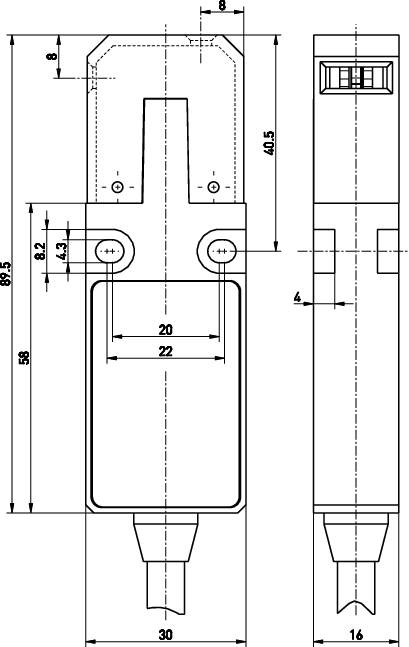

Dimensional drawing
Further drawings
Contact diagram

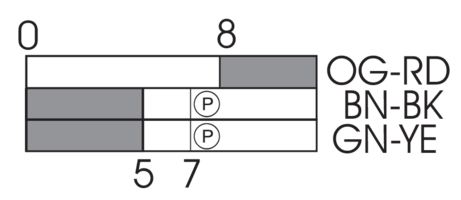

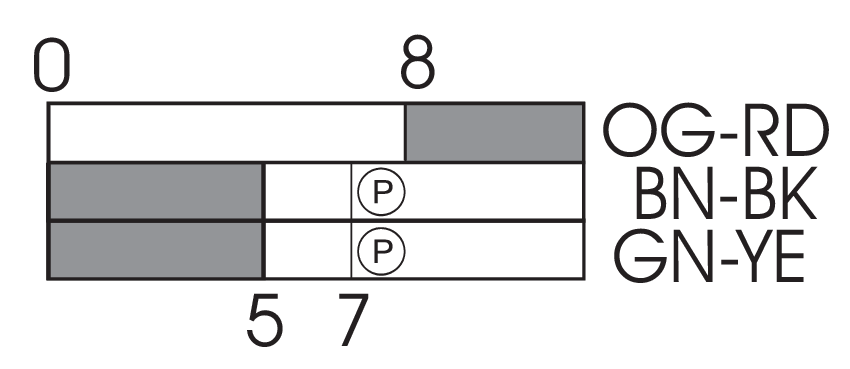

Switching diagram
T Positive break travel/angle
Note
Inserted position of actuator = 0 in switching diagram.
The actuator is not included with the switches.
