Product features
Metal enclosure
sWave® wireless technology
2 push buttons
Collars (blue, red, green, black, grey) are included in delivery
No wiring and cable laying required
Power supply by Lithium battery
Easy programming of receiver
Output signal can be individually configured at the receiver
LBT - Listen before Talk Firmware
Technical data
General technical data
- Applied standards
- EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, EN 301 489-3, EN 300 220-2
- Enclosure
- stainless steel 1.4301
- Degree of protection
- IP67 (IEC/EN 60529)
- Switching system
- push button
- Ambient temperature
- –20 °C … +65 °C
- Switching frequency
- max. 5 Hz
- Safety class
- III
- Mechanical life
- > 1 million operations
- Actuating time
- min. 80 ms
- Note
- status signal – can be individually configured via radio receiver (delivery state: without status signal)
LBT – can be deactivated via radio receiver (e.g. in conjunction with repeaters)
transmission of battery voltage and switching condition
Go to our different wireless receivers to find corresponding how-to videos.
- Wireless approvals
- USA: FCC-Id. XK5-RFRXSW915
Canada: IC - 5158A-RFRXSW915
Wireless technology
- Frequency
- 915 MHz (USA, Canada)
- Data rate
- 66 kbps
- Channel bandwidth
- 550 kHz
- Modulation type
- 2-FSK
- Protocol
- sWave®
- Transmission power
- < 25 mW
- Wireless range
- max. 450 m outdoors, max. 40 m indoors
Voltage supply
- Voltage source
- lithium battery Tadiran SL-361/P, 2/3 AA (battery incl. battery enclosure replaceable)
- System
- Li/SOCl2
- Nominal voltage
- 3.6 V
- Nominal capacity
- 1.6 Ah
- Battery life
- > 800 000 operations

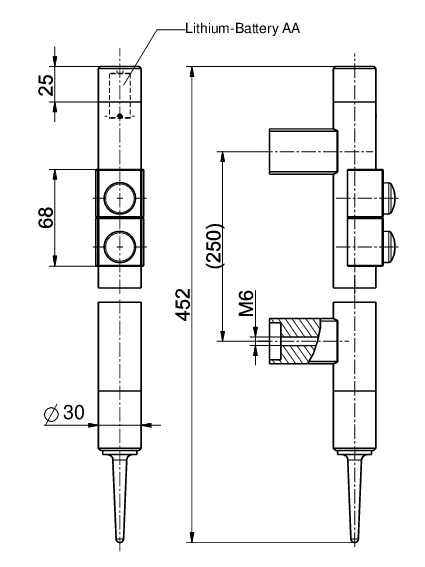

Dimensional drawing
Downloads
Variants / Options
The following variants / options are available on request:
Up to 4 push buttons
