Product features
Thermoplastic enclosure
sWave® 2.4 GHz wireless technology
Keypad with four function keys and LED display
Surrounding sealing (shock protection)
With lanyard keychain mounting
Power supply by battery
Internal ceramic antenna
Easy programming of receiver
Output signal can be individually configured at the receiver
Technical data
General technical data
- Applied standards
- EN 300 440, EN 60947-5-1, EN 61000-6-2, EN 301 489-3, EN 62479, EN 62368-1
- Enclosure
- ABS, graphite grey, similar to RAL 7024
- Decor seal
- TPE, signal red, similar to RAL 3001
- Antenna
- internal antenna
- Degree of protection
- IP54 (IEC/EN 60529)
- Ambient temperature
- 0 °C … +50 °C
- Storage and shipping temperature
- –10 °C … +50 °C
- Rated operating current Ie
- Active: 25 mA, Sleep: 100 μA
- LED display
- LED red, LED green
- Wireless approvals
- Europe: RED 2014/53/EU
USA: FCC-Id. XK5-SW100AMBINT
Canada: IC - 5158A-SW100AMBINT
- Weight
- 155 g
Wireless technology
- Frequency
- 2.4 - 2.4835 GHz
- Data rate
- 250 kbps
- Modulation type
- 2-FSK
- Channel spacing
- 500 kHz
- Output power
- - 6 dBm e.i.r.p (0 dBm at 50 Ohm)
- Input sensitivity
- up to -98 dBm
- Protocol
- sWave®
- Transmission power
- 1 mW
- Wireless range
- max. 10 m indoors
Voltage supply
- Voltage source
- 3 x batteries Micro/AAA/LR03
- System
- Zn-MnO2 (Alkaline)
- Nominal voltage
- 1.5 V
- Nominal capacity
- 1.2 Ah
- Battery life
- approx. 2 years unused, approx. 130 days when operation per h is 2 mins (8 h/d)

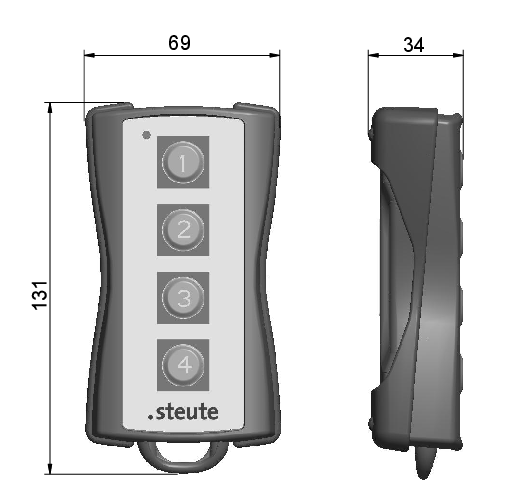

Dimensional drawing
