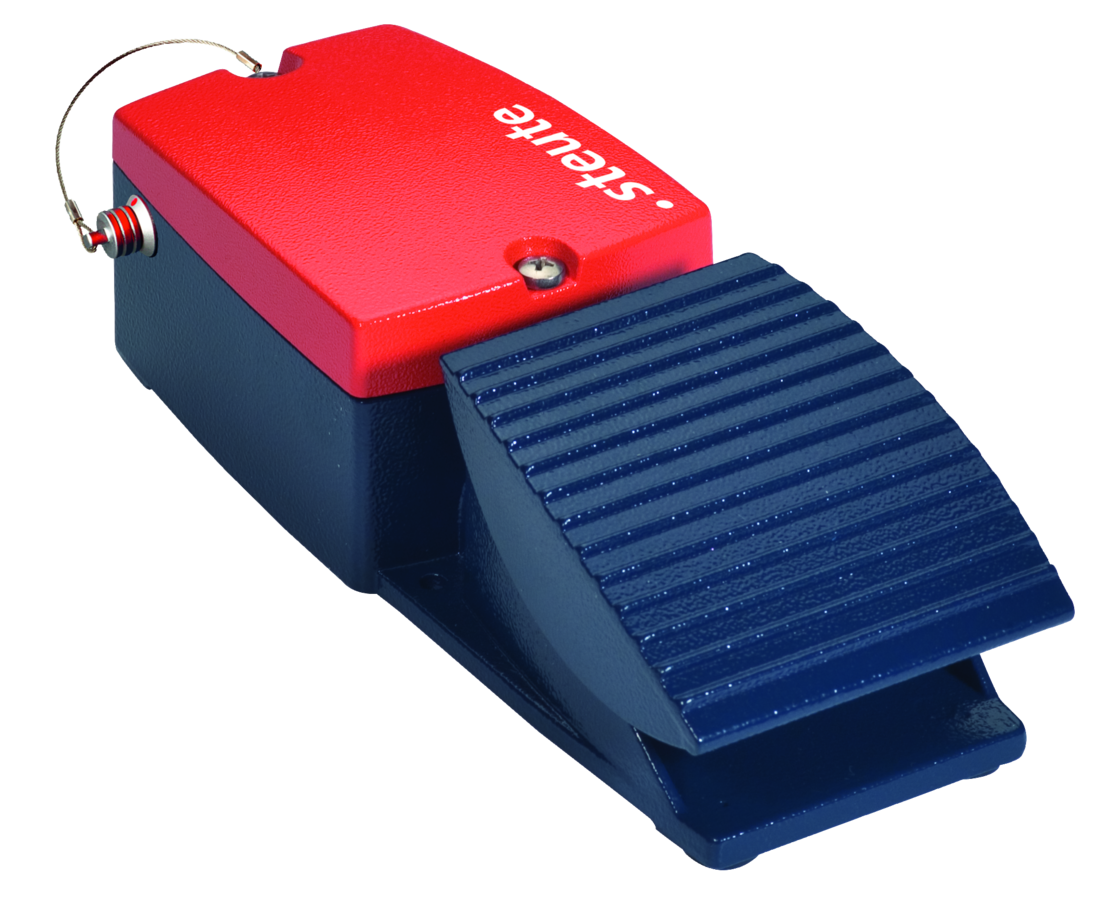

RF GFI 2S SW2.4-safe

Applied standards

EN 60947-5-1, EN 61000-6-2, EN 62061, EN 61326-3-1, EN ISO 13849-1, EN 61784-3, EN 300 328, EN 301 489-1/-17, EN 60950-1, EN 50371

Enclosure

aluminium die-cast, powder-coated

Degree of protection

IP67 (IEC/EN 60529)

Transmission interval

< 50 ms

Synchronisation after sleep mode

max. 8 s

Current consumption

active: approx. 35 mA
sniff mode: approx. 12 mA
sleep mode: approx. 1 mA

Ambient temperature charging

0 °C … +40 °C

Ambient temperature

–20 °C … +55 °C

Storage and shipping temperature

–20 °C … +60 °C

Mechanical life

> 1 million operations

Wireless approvals

Europe: RED 2014/53/EU
USA: FCC-Id. T7V-BC06
Canada: IC 216Q-BC06
Japan: ? ARIB STD-T66

Approvals

TÜV Nord
d

Protocol

sWave®

Frequency

2.4 - 2.4835 GHz

Transmission power

3.15 mW

Wireless range

max. 15 m indoors

Voltage source

rechargeable lithium ion battery

Nominal voltage

3.7 V

Nominal capacity

2.25 Ah

Charging device

power supply 7.5 V/800 mA; 1.8 m cable with plug-in connector (EURO, UK, USA/JAPAN, AUS, IEC)

Battery life

after 300 charging cycles 80 % battery capacity

EN ISO 13849-1

Performance Level PL d

Category

2

B_10d (10 % load)

20 million

T_M

max. 20 years

MTTF_{d electronic}

216 years

MTTF_d

119 years

DC/DC_avg

84 %

PFH_d

5.28 x 10^-7 1/h

n_op

378000
