Product features
Extension of RF RxT SW2.4-safe 24 VDC
4 potential-free relay outputs
4 change-over contacts, max. 6 A
LEDs for indication of switching state
CAN communication
Technical data
General technical data
- Applied standards
- EN 61000-6-2, EN 61000-6-3, EN 60947-5-1, EN 60950
- Degree of protection
- IP20 (IEC/EN 60529)
- Mounting
- DIN rail mounting
- Connection
- terminals with CAGE CLAMP WAGO Series 236: 0.08 … 2.5 mm² / AWG 28-12, AWG 12: THHN, THWN, stripping length 5 … 6 mm / 0.22 in
- Outputs
- 4 change-over contacts (relays)
- Rated operating current/voltage Ie/Ue
- max. 0.21 A/24 VDC -15 % … +10 %;
output contacts: 6 A/250 VAC; 2 A/24 VDC
- Utilisation category
- AC-15; DC-13
- Display
- green LED: ready for operation,
orange LED: signalling of switching state
- Degree of pollution
- 2
- Ambient temperature
- 0 °C … +55 °C
- Storage and shipping temperature
- –25 °C … +85 °C
- Note
- Inductive loads (contactors, relays etc.) are to be suppressed by suitable circuitry.
- Approvals
- d
- Weight
- 160 g

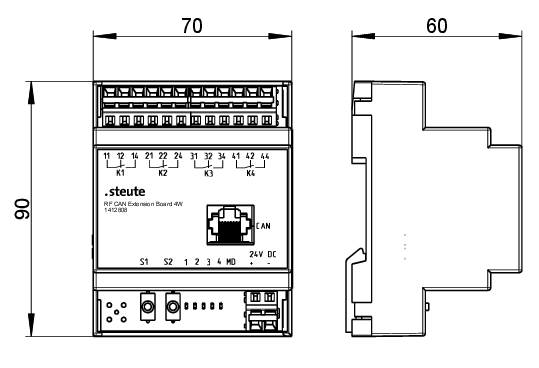

Dimensional drawing
Further drawings

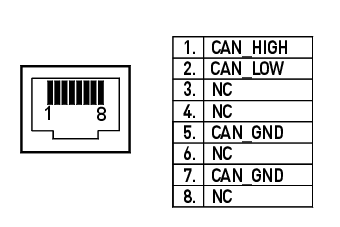

RJ45-CAN socket
