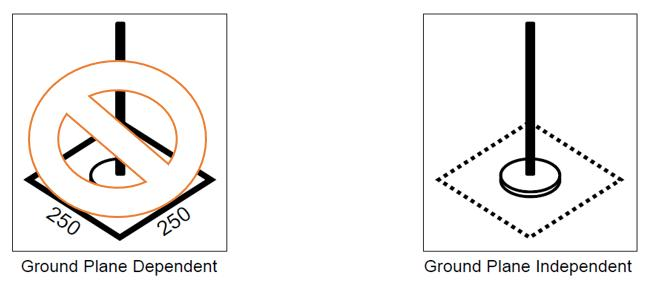

No ground plane necessary
Arrangement of receiver and switch antenna
A = Optimum mounting
B = Possible mounting
C = Unsuitable mounting

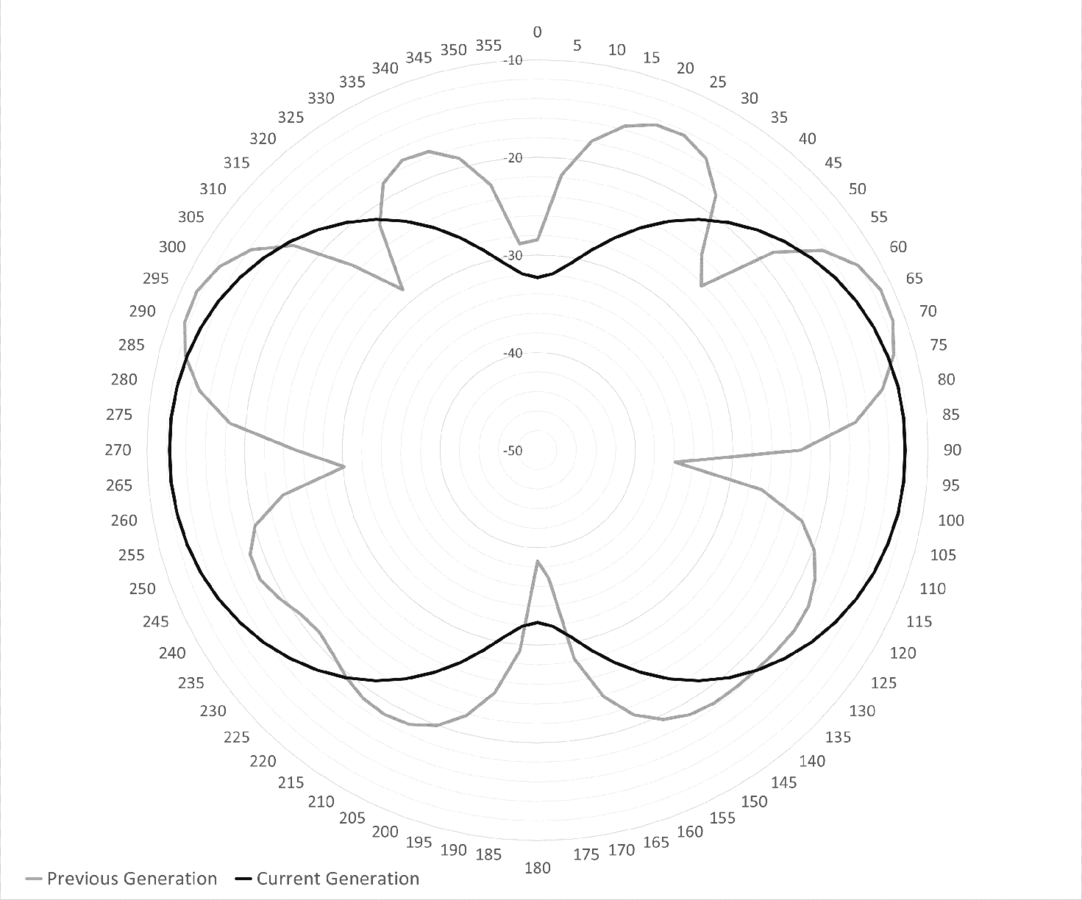

Radiation diagram
Standard version

Accessories for wireless receivers and repeaters

RF antenna 860-870 MHz SMA 1.5 m

Article no.: 1263761

contact us

Product features

Wireless

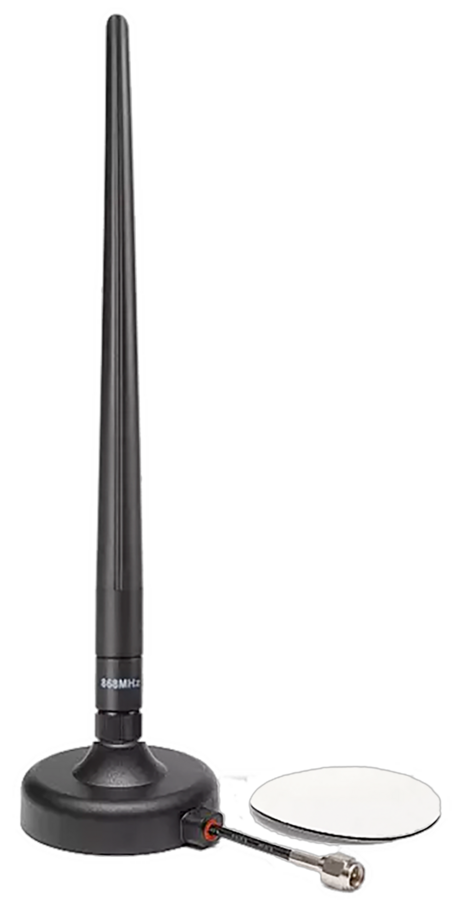

  • RF magnet antenna with straight SMA plug-in connector without ferrite core

  • Dipole antenna

  • Suitable for mounting without HF ground (metal plate)

  • Suitable for SW868

  • Cable length 1.5 m

  • Double side adhesive sticker included

Technical data

Frequency range

860 - 870 MHz

Impedance

50 Ω

Gain

2 dBi

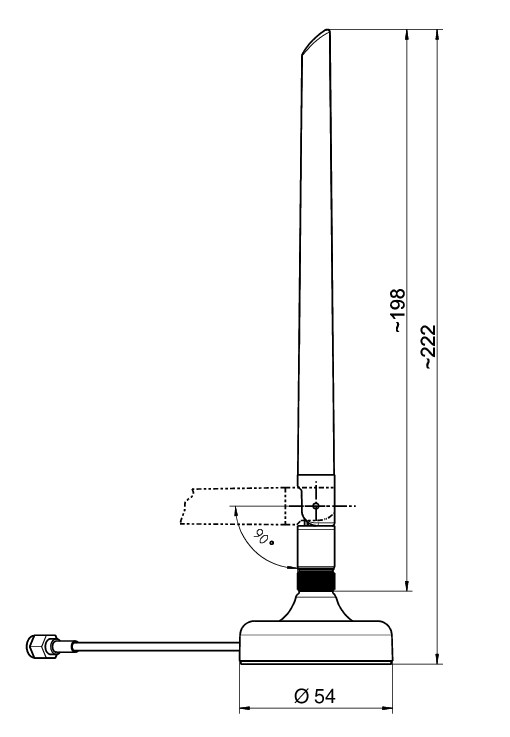

Dimensions

Ø foot 54 mm, height approx. 223 mm

Connection

cable LL100

Cable length

1.5 m

Connector

SMA (male)
