Safety sensor
RC Si M30 2Ö - LED - 5m - Niro - IP69 Extreme
Article no.: on request
This product is only available on request, please contact our sales team. contact usProduct features
High degree of protection IP69
Stainless steel enclosure
Long life
Reed contacts, coded
Actuation from front
Switching distance up to 10 mm
With pre-wired cable
Version with LED lamp
Notes
2 mounting nuts are included in delivery.
The actuator is not included in the delivery of the switches.
Technical data
General technical data
Applied standards
EN ISO 13849-1, EN ISO 14119, EN 60947-5-2, EN 60947-5-3*
Enclosure
stainless steel 1.4539
Sensor type
type 4 interlocking device
Coding level
low coding
Tightening torque
mounting nut: max. 75 Nm
Degree of protection
IP66, IP67, IP69 (IEC/EN 60529) / IP69K (ISO 20653)
Switching system
reed contacts

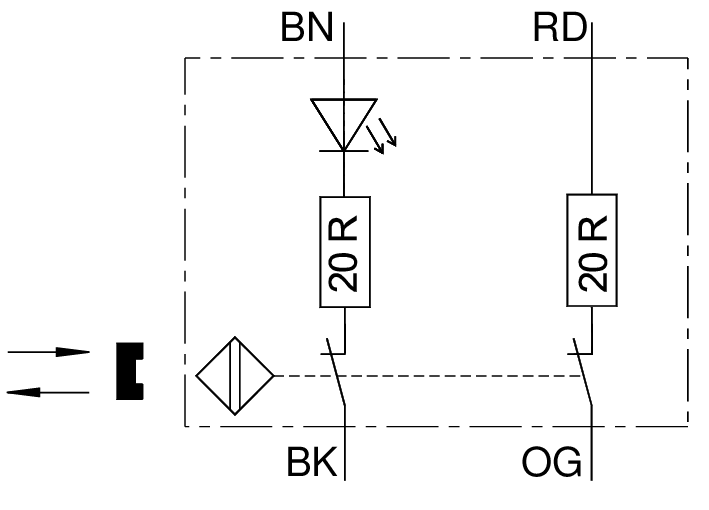

Switching elements
2 NC contacts
Connection
cable 4 x AWG 20
Cable cross-section
4 x 0.56 mm²
Cable length
5 m
Switching voltage
max. 30 VDC
Rated operating current/voltage Ie/Ue
max. 20 mA / 24 VDC
Utilisation category
DC-12
Voltage drop at Ie
max. 3 V
Short-circuit current Ik
max. 30 mA for 50 ms
Degree of pollution
3
Safety class
II
Rated switching distance sn
10 mm
Assured switching distance »ON« sao
8 mm
Assured switching distance »OFF« sar
30 mm
Repeatability
< 0.5 mm
Hysteresis
≤ 14 mm
Ambient temperature
–20 °C … +85 °C
Mechanical life
> 10 million operations
Approvals
d
Safety-relevant data
EN ISO 13849-1
Performance Level PL e
Category
4
B10d (10 % load)
20 million
TM
max. 20 years
MTTFd
> 100 years
DC/DCavg
> 99 %
hop
8 h/day
dop
220 days/year
tzyklus
20 s
Note
The safety-related data are only valid in combination with a safety module, e.g. SRM 21 RT2 (mat. no. 1179203).
Downloads
Variants / Options
The following variants / options are available on request:
Maritime certification to DNV <
