Safety sensor

RC Si M30 2Ö - 2m - Niro - IP69 -40°C Extreme

Article no.: 1188981Old article no.: 23059201

Standard version
contact us

Product features

Safety

  • High degree of protection IP69

  • Stainless steel enclosure

  • Long life

  • Reed contacts, coded

  • Actuation from front

  • With pre-wired cable

Notes

  • 2 mounting nuts are included in delivery.

  • The actuator is not included in the delivery of the switches.

Technical data

Applied standards
EN ISO 13849-1, EN ISO 14119, EN 60947-5-2, EN 60947-5-3*
Enclosure
stainless steel 1.4539
Sensor type
type 4 interlocking device
Coding level
low coding
Tightening torque
mounting nut: max. 75 Nm
Degree of protection
IP66, IP67, IP69 (IEC/EN 60529) / IP69K (ISO 20653)
Switching system
reed contacts
Switching elements
2 NC contacts
Connection
cable 4 x AWG 20
Cable cross-section
4 x 0.56 mm²
Cable length
2 m
Switching voltage
max. 30 VDC
Rated operating current/voltage Ie/Ue
max. 157 mA / 24 VDC
Utilisation category
DC-12
Voltage drop at Ie
max. 3.15 V
Short-circuit current Ik
max. 750 mA for 50 ms
Degree of pollution
3
Safety class
II
Rated switching distance sn
10 mm
Assured switching distance »ON« sao
8 mm
Assured switching distance »OFF« sar
30 mm
Repeatability
< 0.5 mm
Hysteresis
≤ 14 mm
Ambient temperature
–40 °C … +85 °C
Mechanical life
> 10 million operations
Vibration resistance
10 g (10-500 Hz)
Shock resistance
100 g (1 ms, ½ sin)
Bounce duration
max. 2 ms (response time, incl. bounce)
Approvals
d
Weight
274 g
EN ISO 13849-1
Performance Level PL e
Category
4
B10d (10 % load)
20 million
TM
max. 20 years
MTTFd
> 100 years
DC/DCavg
> 99 %
hop
8 h/day
dop
220 days/year
tzyklus
20 s
Note
The safety-related data are only valid in combination with a safety module, e.g. SRM 21 RT2 (mat. no. 1179203).


Dimensional drawing

Further drawings

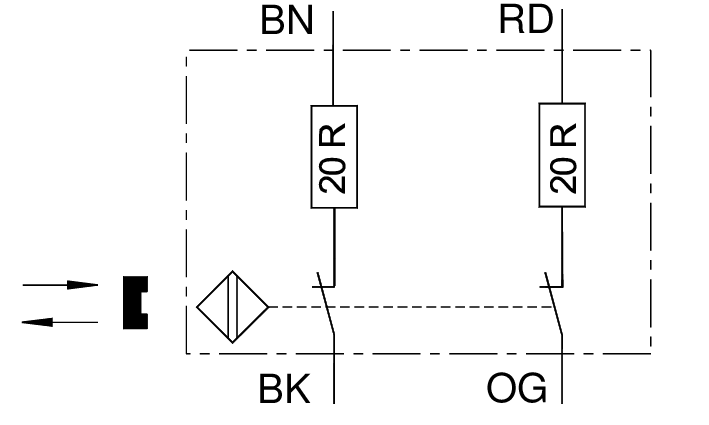

Contact diagram
Axial misalignment

Downloads

Mounting and wiring instructions – RC Si M30 Extreme

German, English, French, Italian, Portuguese

PDF2 MB 13.11.2025

Variants / Options

The following variants / options are available on request:

  • Maritime certification to DNV <
