Magnetic sensor
RC 60 1W - 2m -40° ... +130°C Extreme
Article no.: 1187005Old article no.: 26039201
contact usProduct features
Temperature resistant from -40 °C to +130 °C
Thermoplastic enclosure
Long life
1 Reed contact
Actuation from front and from side
With pre-wired cable
Attention: Please state required international approvals with your order!
Notes
1 mounting nut is included in delivery
The actuator is not included in the delivery of the switches
Technical data
General technical data
Applied standards
EN IEC 60947-5-2
Enclosure
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Degree of protection
IP67 (IEC/EN 60529)
Switching system
reed contacts

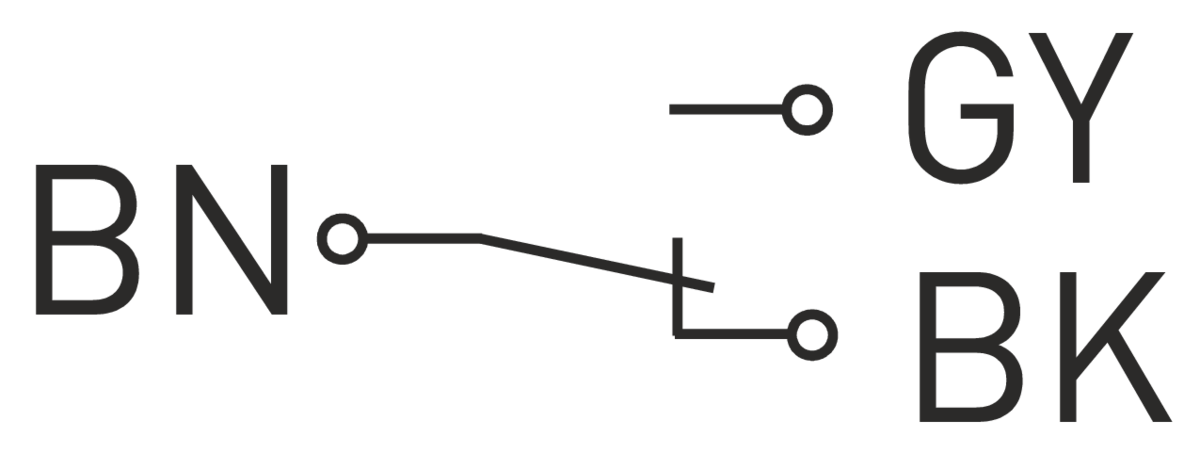

Switching elements
1 change-over contact
Connection
pre-wired cable, Silicone SIHF
Cable cross-section
3 x 0.75 mm²
Cable length
2 m
Switching voltage
max. 250 VAC/DC
Switching current
max. 0.5 A
Switching capacity
max. 15 W
Switching distances
M 30 Niro: ON: approx. 16 mm, OFF: approx. 24 mm
Disc magnet 15x4: ON: approx. 10 mm, OFF: approx. 15 mm
Disc magnet 23x4: ON: approx. 20 mm, OFF: approx. 27 mm
Ambient temperature
–40 °C … +130 °C
Mechanical life
109 operations
Repeatability
± 0.02 mm
Vibration resistance
35 g (10-1000 Hz)
Shock resistance
50 g (11 ms, ½ sin)
Weight
168 g
Downloads
Variants / Options
The following variants / options are available on request:
Maritime certification to DNV <
