Product features
Thermoplastic enclosure
Long life
1 Reed contact
Actuation from front and from side
Switching distance up to 29 mm depending on the actuating magnet
With pre-wired cable
Notes
The actuator is not included in the delivery of the switches.
Technical data
General technical data
- Applied standards
- EN IEC 60947-5-2
- Enclosure
- polyamide, glass-fibre reinforced
- Degree of protection
- IP67 (IEC/EN 60529)
- Switching system
- reed contacts
- Switching elements
- 1 bistable contact
- Connection
- cable PVC LiYY AWG 26
- Cable cross-section
- 2 x 0.14 mm²
- Cable length
- 3 m
- Switching voltage
- max. 250 VDC
- Switching current
- max. 1 A
- Switching capacity
- max. 15 W
- Ambient temperature
- –10 °C … +80 °C
- Mechanical life
- 109 operations
- Repeatability
- ± 0.02 mm
- Weight
- 36 g
Dimensional drawing
Further drawings

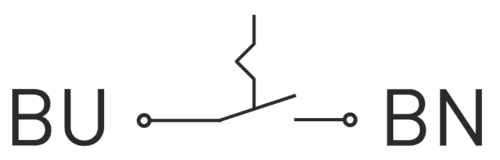

Contact diagram
