Magnetic sensor
RC 2580 1W-2m -40°C IP68 Niro Extreme GL
Article no.: 1190459Old article no.: 22530204
contact usProduct features
Cold-resistant down to -40 °C
High degree of protection IP68
Stainless steel enclosure
Actuation from side
Switching distance up to 30 mm
With pre-wired cable
Maritime certification to DNV (formerly GL)
Notes
The actuator is not included in the delivery of the switches
Technical data
General technical data
Applied standards
EN IEC 60947-5-2
Enclosure
stainless steel 1.4571
Degree of protection
IP68 (IEC/EN 60529)
Switching system
reed contacts
Switching elements

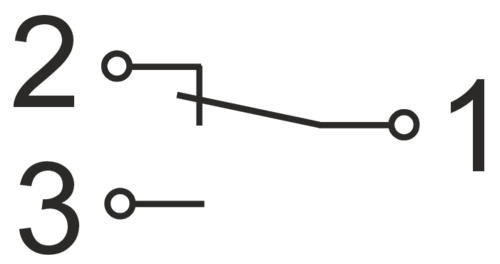

1 change-over contact
Connection
cable BETAflam 145 flex
Cable cross-section
3 x 0.75 mm²
Cable length
2 m
Switching voltage
250 VAC
Switching current
max. 1 A
Switching capacity
max. 50 W/VA
Ambient temperature
–40 °C … +120 °C
Mechanical life
> 1 million operations
Repeatability
± 0.02 mm
Vibration resistance
35 g (10-1000 Hz)
Approvals
<
Shock resistance
50 g (11 ms, ½ sin)
Weight
368 g
Downloads
Variants / Options
The following variants / options are available on request:
Mounting thread M16 x 1.5 for cable protection system
