Magnetic sensor

RC 23 1W - 2m -60°C ... +100°C IP69 Extreme

Article no.: 1253800

Standard version
contact us

Product features

  • Temperature resistant from -60 °C to +100 °C

  • High degree of protection IP69, IP69K

  • Metal enclosure with cable

  • M12 x 1 thread

  • Long life

  • 1 Reed contact

  • Actuation from front and from side

  • Switching distance up to 30 mm depending on the actuating magnet

Notes

  • 2 mounting nuts are included in delivery.

  • The actuator is not included in the delivery of the switches.

Technical data

Applied standards
EN IEC 60947-5-2
Enclosure
brass, nickeled
Degree of protection
IP66, IP67, IP69 (IEC/EN 60529) / IP69K (ISO 20653)
Switching system
reed contacts
Switching elements
1 change-over contact
Connection
cable silicone SIHF
Cable cross-section
3 x 0.75 mm²
Cable length
2 m
Switching voltage
max. 90 VAC / 125 VDC
Switching current
max. 1 A
Switching capacity
max. 30 W/VA
Ambient temperature
–60 °C … +100 °C
Mechanical life
109 operations
Repeatability
± 0.02 mm
Vibration resistance
10 g (10-500 Hz)
Shock resistance
100 g (1 ms, ½ sin)
Bounce duration
max. 2 ms
Weight
180 g

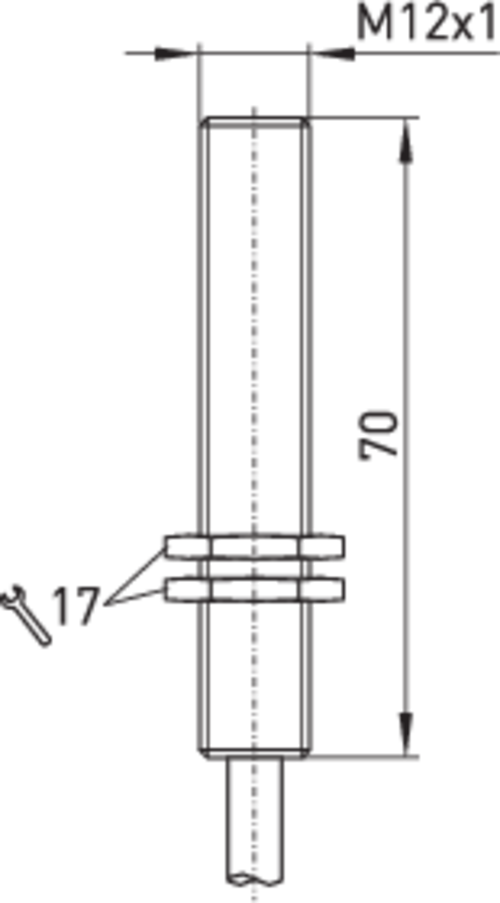

Dimensional drawing

Further drawings

Contact diagram

Downloads

Mounting and wiring instructions – RC Extreme

German, English, French, Italian, Portuguese

PDF1 MB 13.11.2025
