Product features
4-pedal type
Thermoplastic enclosure with metal base plate
Wiring compartment
Reed contacts (1 NO contact per pedal)
for low currents from 1 mA to 1 A
Technical data
General technical data
Applied standards
EN 60947-5-1
Enclosure
aluminium, enamel finish
Pedal
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Degree of protection
IP65 (IEC/EN 60529)
Connection
wiring compartment,
cable gland M16 x 1.5
with spiral top
Clamping range
4 … 8 mm
Switching system
reed contacts

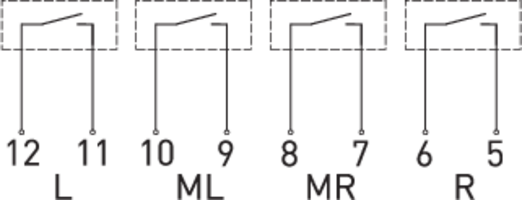

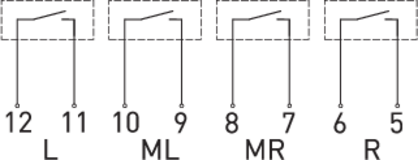

Switching elements
1 NO contact per pedal
Switching voltage
12 … 250 VAC/DC
Switch-on current
max. 1 A
Switch-on power
max. 30 VA
Ambient temperature
–10 °C … +60 °C
Mechanical life
> 1 million operations
Approvals
]
Weight
1000 g
Downloads
Variants / Options
The following variants / options are available on request:
Cable
Plug-in connector
Other contact combinations
