Foot switch with thermoplastic enclosure
KF 1W - 5m
Article no.: 1049284Old article no.: 88158906
contact usProduct features
Thermoplastic enclosure
Small flat design
Reed contacts (1-pole change-over contact)
for low currents from 1 mA to 1 AWith pre-wired cable
Technical data
General technical data
Applied standards
EN 60947-5-1
Enclosure
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Pedal
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Degree of protection
IP65 (IEC/EN 60529)
Connection
cable 3 x AWG 20
Cable length
5 m
Cable diameter
4.8 mm ±3%
Cable cross-section
3 x 0.52 mm²
Switching system
reed contacts

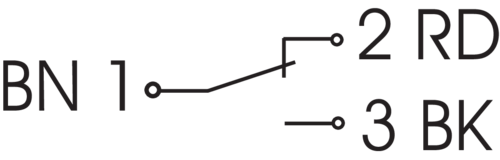

Switching elements
1-pole change-over contact
Switching voltage
12 … 250 VAC/DC
Switch-on current
max. 1 A
Switch-on power
max. 30 VA
Ambient temperature
–10 °C … +60 °C
Mechanical life
> 1 million operations
Approvals
da
Weight
330 g
Downloads
Variants / Options
The following variants / options are available on request:
Other cable lengths
Other cable types
Plug-in connector
