Product features
Heat-resistant up to +120 °C
High degree of protection IP68
Stainless steel enclosure with cable
M8 x 1 thread
Flush mounting
Long life, no mechanical wear
Suitable for the food processing industry
Insensitive to soiling
With LED
Notes
2 mounting nuts are included in delivery.
Technical data
General technical data
- Applied standards
- EN 60947-5-2
- Enclosure
- stainless steel 1.4305
- Front cap
- POM
- Degree of protection
- IP68 (IEC/EN 60529)
- Connection
- cable PUR
- Cable diameter
- 3.6 mm
- Cable cross-section
- 3 x 0.14 mm²
- Cable length
- 2 m
- Switching elements
- 1 NO contact, PNP, 3-wire
- Rated switching distance sn
- 2 mm
- Correction factors
- Steel (S235JR) = 1;
Stainless steel approx. 0.7; Brass approx. 0.5; Aluminium approx. 0.5; Copper approx. 0.4
- Rated operating voltage range UB
- 6 … 30 VDC
- Residual ripple
- ≤ 10 %
- Switching current
- max. 0.2 A
- Voltage drop at Ie
- max. 1.8 V
- Current absorption
- < 12 mA at 24 VDC
- Hysteresis
- approx. 10 %
- Switching frequency
- 2000 Hz
- Repeatability
- ≤ 3 %
- Protection circuit
- Inductive interference protection, protection against polarity reversal, short-circuit and overload proof
- Ambient temperature
- 0 °C … +120 °C
- Weight
- 40 g

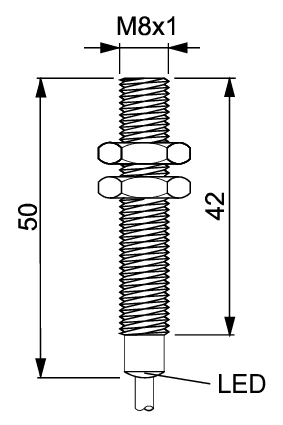

Dimensional drawing
Further drawings
Contact diagram
Flush mounting
Side by side mounting
