Safety foot switch
GFS 2S D 2Ö VD IP69 Thermoplastic protective shield Extreme
Article no.: 1363156
Product features
High degree of protection IP69
With thermoplastic protective shield
4 contacts
NC contact 15-16 A in series with NO contact 23-24 (internal wiring)
High level of stability
Low pedal height
Wiring compartment
Technical data
General technical data
- Applied standards
- EN ISO 13849-1, EN 60947-5-1, BG-GS-ET-15
- Enclosure
- aluminium die-cast, powder-coated
- Pedal
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Protective shield
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Degree of protection
- IP69 (IEC/EN 60529)
- B10d (10 % load)
- 200 000
- TM
- max. 20 years
- Connection
- screw connection terminals
- Cable cross-section
- min. 0.5 mm², max. 2.5 mm² (rigid or flexible with conductor ferrules)
- Cable entry
- 1 x M20 x 1.5
- Contact material
- silver
- Switching system
- slow action, positive break NC contacts A
- Degree of pollution
- 3
- Safety class
- I
- Switching elements
- 2 NO/2 NC contacts
- Actuating force
- pressure point approx. 245 N
- Utilisation category
- AC-15
- Rated impulse withstand voltage Uimp
- 6 kV
- Rated insulation voltage Ui
- 500 V
- Conditional short-circuit current
- 1100 A
- Conventional thermal current Ithe
- 16 A
- Rated operating current/voltage Ie/Ue
- 16 A/400 VAC
- Contact load capacity
- max. 400 VAC, max. 16 A (cos φ = 1)
- Short-circuit protection
- 16 A gG fuse
- Ambient temperature
- –25 °C … +80 °C
- Mechanical life
- > 100 000 operations
- Approvals
- a

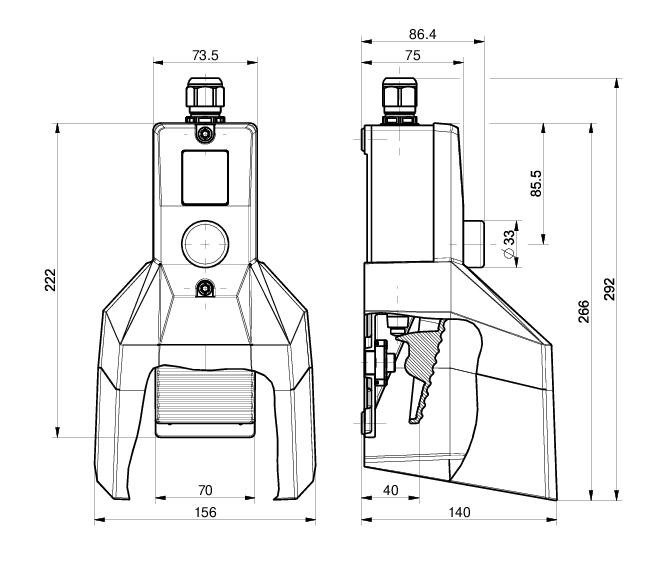

Dimensional drawing
Further drawings

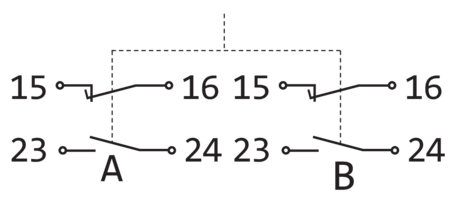

Contact diagram
Switching diagram
U Latching point
Downloads
Safety foot switch
GFS 2S D 2Ö VD IP69 Thermoplastic protective shield ExtremeArticle no.: 1363156
