Product features
With enable function
Metal enclosure
High level of stability
Low pedal height
Wiring compartment
NO contacts 33-34 and 43-44 are converted into positive break NC contact A by internal baffle after pressure point,
Safety contacts: 33-34 and 43-44 APlus 1 NC/1 NO contact, NC contact: direct opening action, as signal contact after pressure point
Technical data
General technical data
- Applied standards
- EN 60947-5-8, EN ISO 13849-1, GS-ET-22
- Enclosure
- aluminium die-cast, powder-coated
- Cover
- aluminium die-cast, powder-coated
- Pedal
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Degree of protection
- IP65 (IEC/EN 60529)
- B10d (10 % load)
- 2 million
- TM
- max. 20 years
- Connection
- screw connection terminals
- Cable cross-section
- min. 0.5 mm², max. 2.5 mm² (rigid or flexible with conductor ferrules)
- Cable entry
- 1 x M25 x 1.5
- Contact material
- silver
- Degree of pollution
- 3
- Safety class
- I
- Overvoltage category
- III
- Switching system
- slow action, positive break NC contacts A
- Switching elements
- 2 NO contacts + 1 NC/1 NO contact
- Switch insert
- 1 x EM 232 IK 2S + 1 x ES 60 1Ö/1S per pedal
- Utilisation category
- AC-15
- Rated impulse withstand voltage Uimp
- 6 kV
- Rated insulation voltage Ui
- 400 V
- Conditional short-circuit current
- 1100 A
- Conventional thermal current Ithe
- 3 A
- Rated operating current/voltage Ie/Ue
- 3 A/400 VAC
- Short-circuit protection
- 4 A gG fuse
- Ambient temperature
- –25 °C … +80 °C
- Mechanical life
- > 1 million operations
- Actuating force
- min. 18 N, max. 170 N
- Weight
- 1600 g
Dimensional drawing
Further drawings
Contact diagram

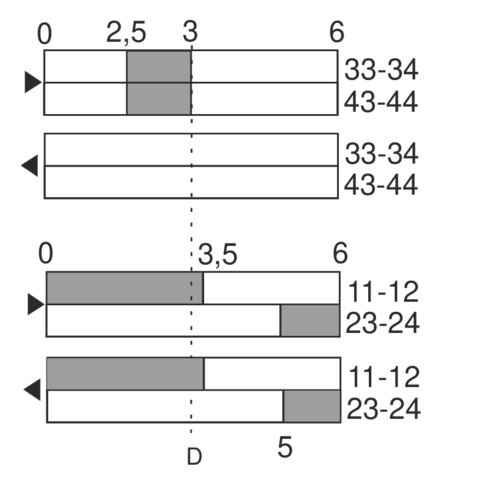

Switching diagram
