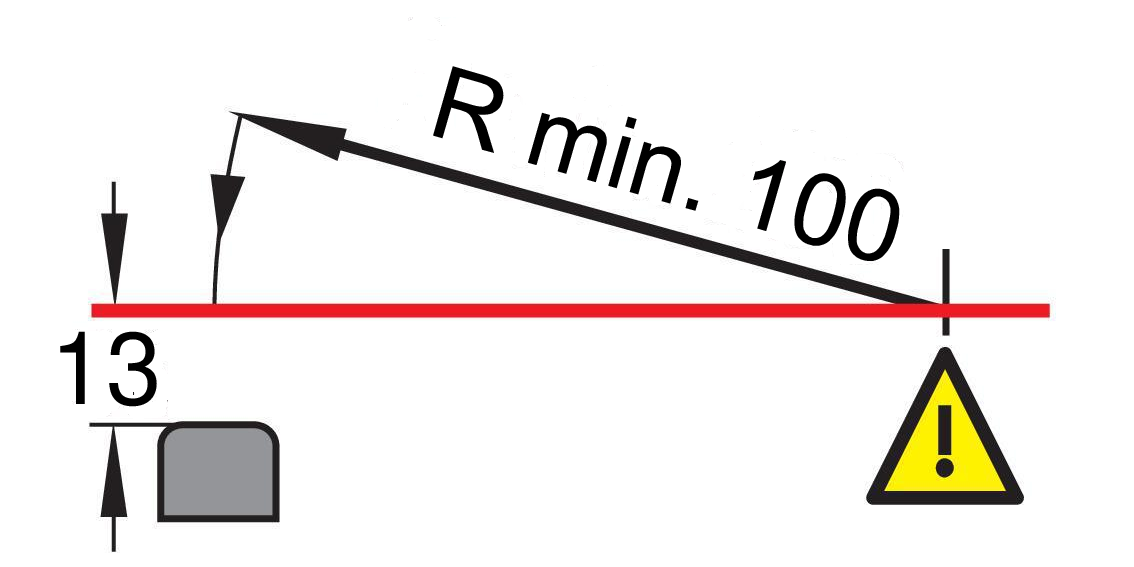

Actuating radius narrow edge Attention! 13 mm must be referred to the surface of the enclosure and not to the inserted actuator!

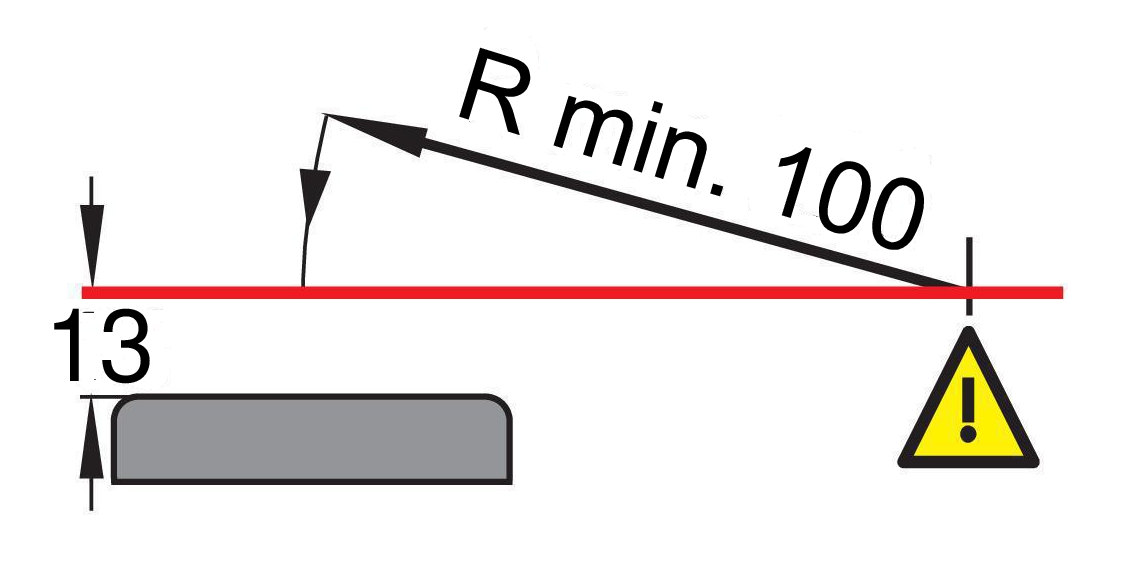

Actuating radius wide edge Attention! 13 mm must be referred to the surface of the enclosure and not to the inserted actuator!
Standard version

Accessories for Ex 355 AZ

Flexible actuator AZ 335/355-B6

Article no.: 1170540Old article no.: 01.08.0159

contact us

Product features

  • Especially suitable for hinged guards

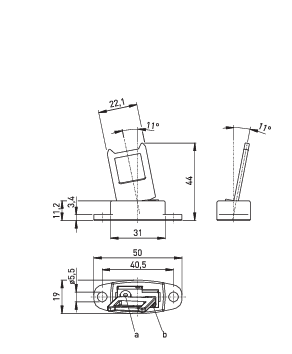

  • Actuating radius adjustable, min. 100 mm, using a hexagonal key wrench (a or b)

Technical data

Actuating radius

min. 100 mm

Weight

41 g

Downloads

Data sheet – Flexible actuator AZ 335/355-B6

English

PDF155 KB 18.06.2025
Data sheet – Flexible actuator AZ 335/355-B6

Chinese

PDF170 KB 18.06.2025
