Actuating radii The axis of the hinge should be x mm above the top edge
of the safety switch and in the same plane.
a = Actuating radius to the plane of the actuator
b = Actuating radius in line with the plane of the actuator
x = Axial misalignment

Attention! x must be referred to the surface of the enclosure and not to the inserted actuator!
Standard version

Accessories for Ex AZ 16

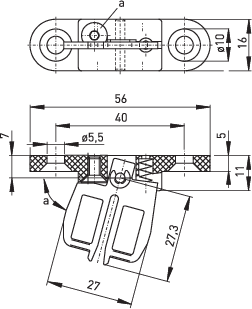

Flexible actuator AZ 15/16-B2

Article no.: 1172616Old article no.: 01.08.0188

contact us

Product features

  • Actuating radius on hinged guards b = 45 mm

  • Axial misalignment x = 11 mm

Downloads

Mounting instructions – AZ 16-B1, -B2, -B3

German, English, French, Italian, Portuguese, Russian

PDF2 MB 04.10.2023
