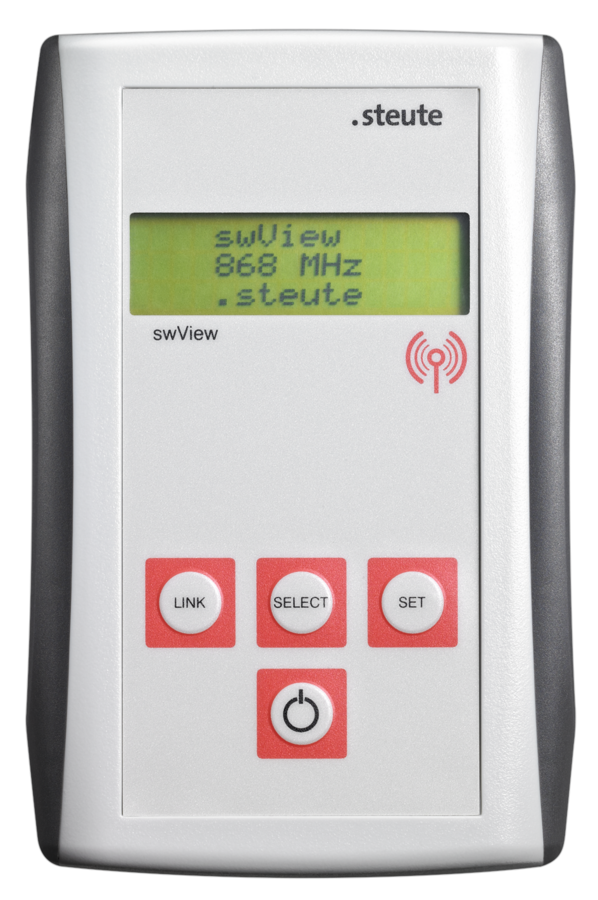

Field strength testing tool swView 868 MHz
Article no.: 1190393Old article no.: 90590025
contact usProduct features
Only suitable for sWave® 868 MHz wireless technology
Mobile field strength indicator for link range testing
To measure and indicate the electrical field strength
The batteries are included in delivery
Several functions can be selected: Scan-Mode, Repeat-Mode, Rescan-Mode, Radio-Link
Technical data
General technical data
Applied standards
EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, EN 61000-4-2, EN 301 489-1, EN 301 489-3, EN 300 220-1, EN 300 220-2
Enclosure
ABS, UL 94 HB
Degree of protection
IP44 (IEC/EN 60529)
Display
LCD 3x16 ASCII signs
Telegram rate
approx. 1200 telegrams/h depending on the mode
Wireless range
max. 400 m outdoors, max. 40 m indoors
Standby
after 5 min.
Ambient temperature
–10 °C … +50 °C
Weight
220 g
Voltage supply
Voltage source
2 x batteries Mignon/AA/LR6 (replaceable)
System
Zn-MnO2 (Alkaline)
Nominal voltage
1.5 V
Nominal capacity
2.9 Ah
Battery life
standby: approx. 3 years, active mode (continuous operation): approx. 12 days
