Ex emergency pull-wire switch
Ex ZS 75 S 2Ö VD-de Mining
Article no.: 1185446Old article no.: 75530902
contact usProduct features
Device group I (Mining)
Equipment category M2
Metal enclosure
2 contacts
Wire length up to 2 x 100 m

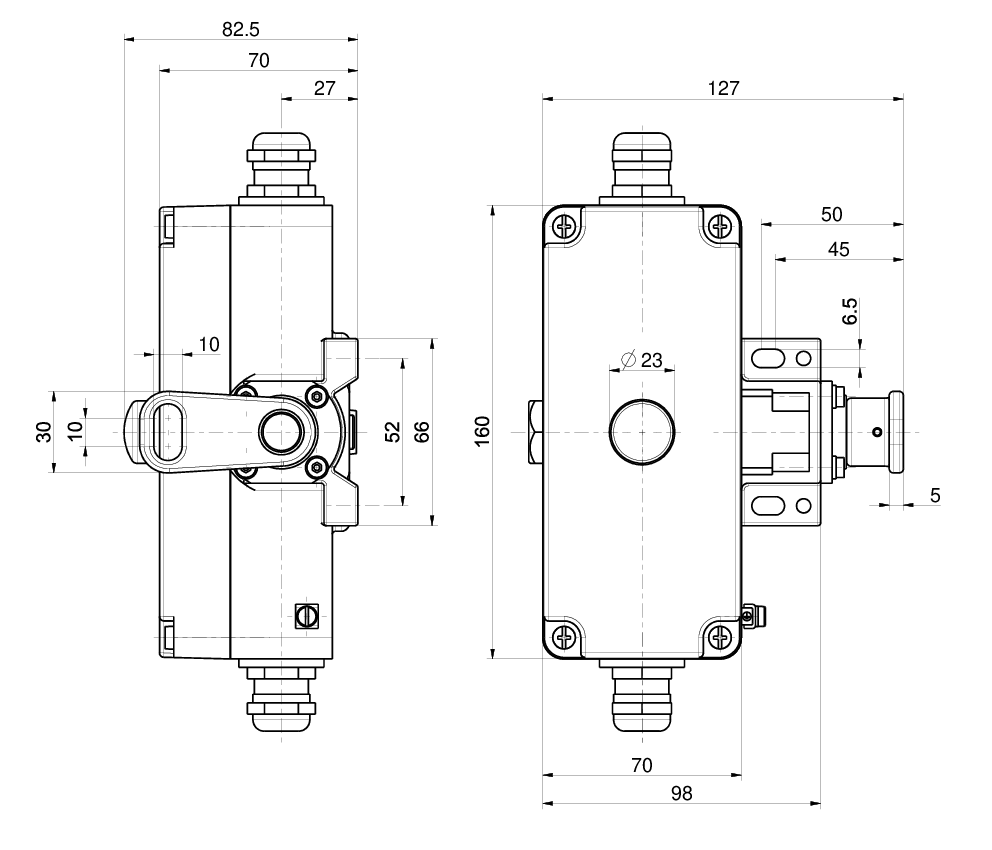

Technical data
General technical data
Applied standards
EN 60947-5-5, EN ISO 13849-1, EN IEC 60079-0, EN 60079-1, EN IEC 60079-7, EN 60079-11, EN 50303
Enclosure
zinc die-cast, enamel finish
Cover
zinc die-cast, enamel finish
Degree of protection
IP65 (IEC/EN 60529)
B10d (10 % load)
300 000
TM
max. 20 years
Switch insert
1 x Ex 95
Contact material
silver
Switching system
slow action, positive break NC contacts A
Switching elements
2 NC contacts
Connection
screw connection terminals
Cable cross-section
max. 1.5 mm² (incl. conductor ferrules)
Cable entry
2 x M20 x 1.5
Clamping range
6 … 12 mm
Rated impulse withstand voltage Uimp
4 kV
Rated insulation voltage Ui
250 V
Conventional thermal current Ithe
6 A
Rated operating current/voltage Ie/Ue
6 A/250 VAC; 0.25 A/230 VDC
Utilisation category
AC-15; DC-13
Short-circuit protection
6 A gG/gN fuse
Ambient temperature
–20 °C … +60 °C
Mechanical life
> 150 000 operations
Max. wire length
2 x 100 m
Ex marking
L I M2 Ex db eb I Mb
Approvals
OBAC 10 ATEX 264X
Weight
2200 g
Downloads
Loading...
Accessories
| Type | Standard version | Article no. | ||
|---|---|---|---|---|
|
Compensation spring ZS 73/75 S | yes | 1187935 | more |
|
Wire tensioner TS 65 | yes | 1186621 | more |
|
Wire clamp 3 mm stainless steel | yes | 1033299 | more |
|
Duplex wire clamp | yes | 1033248 | more |
|
Turnbuckle M6 | yes | 1033254 | more |
|
Egg-shaped wire clamp | yes | 1181896 | more |
|
Wire thimble RW 4 | yes | 1033245 | more |
|
Wire thimble RW 3 stainless steel | yes | 1172707 | more |
|
Eye bolt LB M8 x 70 with 2 nuts | no | 1476846 | more |
|
Eye bolt BM8 x 70 with 2 nuts | yes | 1170601 | more |
|
Eye bolt BM8 x 70 with 2 nuts, stainless steel | yes | 1189687 | more |
|
Eye bolt BM10 x 40 with nut | yes | 1032610 | more |
|
Eye bolt open M10 x 150 with 2 nuts | yes | 1461640 | more |
|
|
Eye bolt open M10 x 120 with 2 nuts | yes | 1279170 | more |
|
Turnbuckle M8 stainless steel | yes | 1033300 | more |
|
Carabiner, stainless steel 50x5 | yes | 1488319 | more |
|
Carabiner, galvanized 50x5 | yes | 1187906 | more |
|
Pull-wire Ø 5 mm per metre | yes | 1032984 | more |
|
|
Pull-wire stainless steel Ø 5 mm per metre | yes | 1033297 | more |
|
Complete pull-wire set, 5 m | yes | 1041628 | more |
|
|
Complete pull-wire set, 10 m | yes | 1041633 | more |
|
|
Complete pull-wire set, 15 m | yes | 1041634 | more |
|
|
Complete pull-wire set, 20 m | yes | 1041645 | more |
|
|
Complete pull-wire set, 25 m | yes | 1041635 | more |
|
|
Complete pull-wire set, 30 m | yes | 1041641 | more |
|
|
Complete pull-wire set, 40 m | no | 1041647 | more |
|
|
Complete pull-wire set, 50 m | yes | 1041642 | more |
|
Pulley Multiflex 4R | yes | 1377311 | more |
|
Pulley stainless steel | yes | 1041765 | more |
|
Wire grip | yes | 1444744 | more |
|
Wire clamp 3 mm | yes | 1033247 | more |
