Ex magnetic sensor
Ex RC M20 1S - 5m Niro -40°C GL
Article no.: 1182740Old article no.: 22023505
contact usProduct features
Ex zone 1 and 21
Stainless steel enclosure
Cold-resistant down to -40 °C
Actuation from front
Switching distance up to 30 mm depending on the actuating magnet
With pre-wired cable
Maritime certification to DNV (formerly GL)
Notes

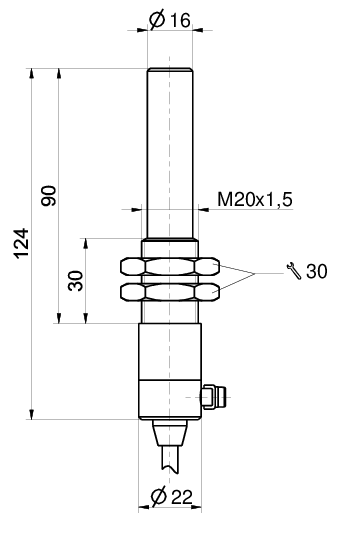

2 mounting nuts are included in delivery
The actuator is not included in the delivery of the switches
Technical data
General technical data
Applied standards
EN IEC 60947-5-2, EN IEC 60079-0, EN 60079-18
Enclosure
stainless steel
Degree of protection
IP67 (IEC/EN 60529)
Switching system
reed contacts

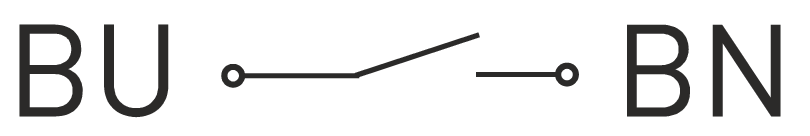

Switching elements
1 NO contact
Connection
cable Ölflex Heat 125
Cable cross-section
3 x 0.75 mm²
Cable length
5 m
Switching voltage
max. 250 VAC/DC
Switching current
max. 1.5 A
Short-circuit current Ik
max. 5 A
Switching capacity
max. 100 W/VA
Bounce duration
max. 2 ms
Ambient temperature
–40 °C … +70 °C
Mechanical life
> 1 million operations
Vibration resistance
10 g (1-500 Hz)
Shock resistance
150 g (2 ms, ½ sin)
Impact energy
max. 7 J
Ex marking
L II 2G Ex mb IIC T6 Gb,
L II 2D Ex mb IIIC T80 °C Db
IECEx Ex mb IIC T6 Gb
Ex mb IIIC T80 °C Db
Approvals
DMT 01 ATEX E 058 X
IECEx BVS 07.0007 X
fa<
Weight
550 g
Downloads
Variants / Options
The following variants / options are available on request:
Mounting thread M16 x 1.5 for cable protection system
