Product features
Ex zone 1 and 21
Brass enclosure, nickeled
Actuation from front
Switching distance up to 30 mm depending on the actuating magnet
With pre-wired cable
Attention: Please state required international approvals with your order!
Notes
2 mounting nuts are included in delivery.
The actuator is not included in the delivery of the switches.
Technical data
General technical data
- Applied standards
- EN IEC 60947-5-2, EN IEC 60079-0, EN 60079-18
- Enclosure
- brass, nickeled
- Degree of protection
- IP67 (IEC/EN 60529)
- Switching system
- reed contacts
- Switching elements
- 1 NO contact
- Connection
- cable H05VV-F
- Cable cross-section
- 3 x 0.75 mm²
- Cable length
- 10 m
- Switching voltage
- max. 250 VAC/DC
- Switching current
- max. 1.5 A
- Short-circuit current Ik
- max. 5 A
- Switching capacity
- max. 100 W/VA
- Bounce duration
- max. 2 ms
- Ambient temperature
- –20 °C … +70 °C
- Mechanical life
- > 1 million operations
- Vibration resistance
- 10 g (1-500 Hz)
- Shock resistance
- 150 g (2 ms, ½ sin)
- Impact energy
- max. 7 J
- Ex marking
- L II 2G Ex mb IIC T6 Gb,
L II 2D Ex mb IIIC T80 °C Db
IECEx Ex mb IIC T6 Gb
Ex mb IIIC T80 °C Db
- Approvals
- DMT 01 ATEX E 058 X
IECEx BVS 07.0007 X
fa
- Weight
- 930 g

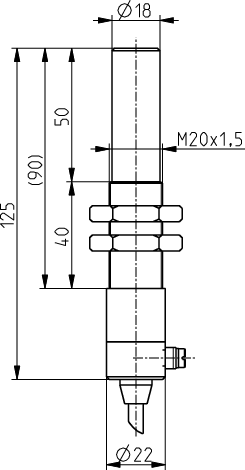

Dimensional drawing
Further drawings
Contact diagram
Downloads
Variants / Options
The following variants / options are available on request:
Cold-resistant version down to -40 °C
Maritime certification to DNV <
Stainless steel enclosure
Mounting thread M16 x 1.5 for cable protection system
