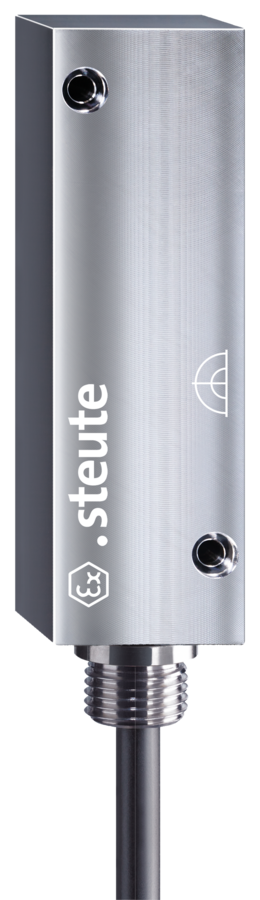

Ex magnetic sensor
Ex RC 2580 1W-B-Niro-5m
Article no.: 1190153Old article no.: 22533502
contact usProduct features
Ex zone 1 and 21
Stainless steel enclosure
Actuation from side
With pre-wired cable

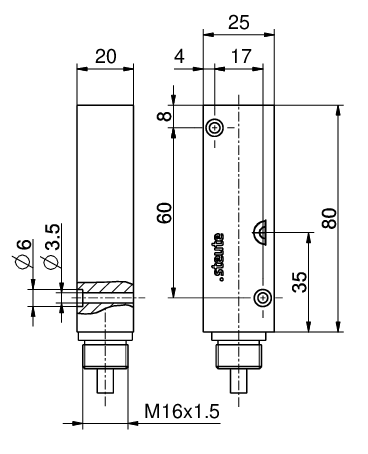

With mounting thread M16 x 1.5 for cable protection system
Attention: Please state required international approvals with your order!
Notes
The Ex RC 2580 B (with mounting thread) has "double reinforced insulation". These devices do not require earthing.
The actuator is not included in the delivery of the switches
Technical data
General technical data
Applied standards
EN IEC 60947-5-2, EN IEC 60079-0, EN 60079-18
Enclosure
stainless steel 1.4571
Degree of protection
IP67 (EN 60079-0 + IEC/EN 60529)
IP68, IP69 (IEC/EN 60529)
IP69K (ISO 20653)
Switching system
reed contacts
Switching elements

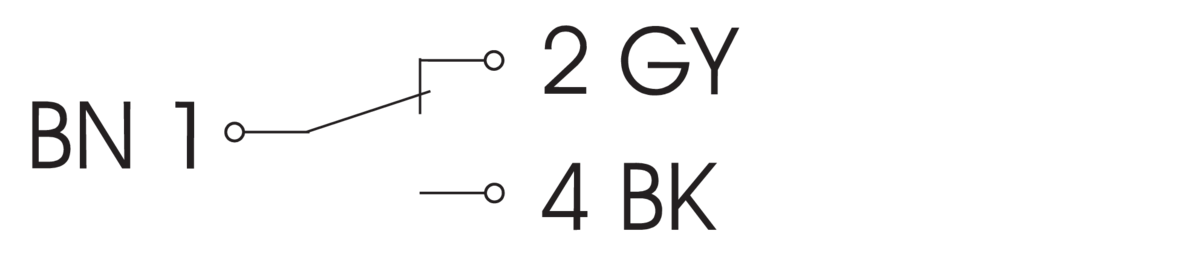

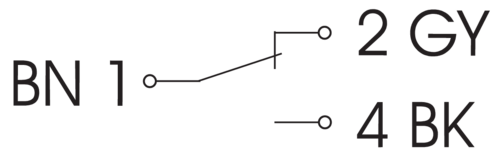

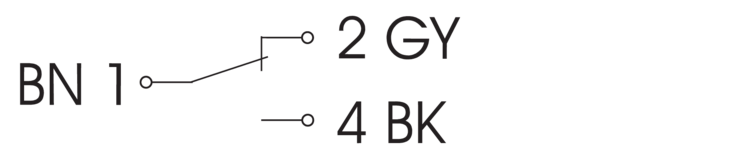

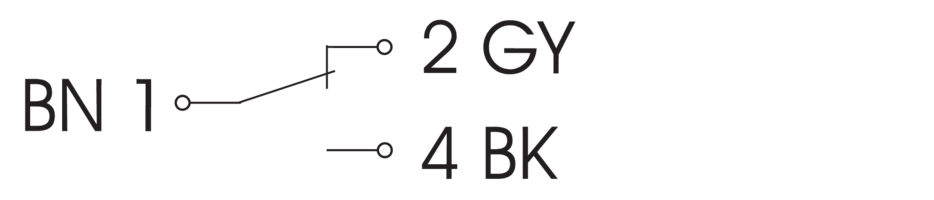

1 change-over contact
Connection
pre-wired cable H05VV-F
Cable cross-section
3 x 0.75 mm²
Cable length
5 m
Switching voltage
max. 250 VAC
Switching current
max. 0.5 A
Short-circuit current Ik
max. 2 A
Switching capacity
max. 30 W/VA
Ambient temperature
–20 °C … +70 °C
Mechanical life
> 1 million operations
Vibration resistance
35 g (10-1000 Hz)
Shock resistance
50 g (11 ms, ½ sin)
Impact energy
max. 7 J
Ex marking
L II 2G Ex mb IIC T6 Gb,
L II 2D Ex mb IIIC T80 °C Db
IECEx Ex mb IIC T6 Gb
Ex mb IIIC T80 °C Db
Approvals
DMT 01 ATEX E 058 X
IECEx BVS 07.0007 X
fa
Weight
640 g
Downloads
Variants / Options
The following variants / options are available on request:
Maritime certification to DNV <
Special version only for gas Ex zone 2 and dust Ex zone 22
Cold-resistant version down to -40 °C
