Product features
Ex zone 0 and 20
Stainless steel enclosure with cable
M8 x 1 thread
Non-flush mounting
Long life, no mechanical wear
Suitable for the food processing industry
Insensitive to soiling
With LED
Attention: Please state required international approvals with your order!
Notes
2 mounting nuts are included in delivery.
Technical data
General technical data
- Applied standards
- EN IEC 60079-0, EN 60079-11, EN 60079-26
- Enclosure
- stainless steel 1.4305
- Front cap
- POM
- Degree of protection
- IP66, IP67, IP68 (EN IEC 60079-0 + IEC/EN 60529)
- Connection
- cable PUR blue
- Cable diameter
- 4.1 mm
- Cable cross-section
- 2 x 0.25 mm²
- Cable length
- 5 m
- Switching system
- Namur to EN 60947-5-6
- Rated switching distance sn
- 2 mm
- Correction factors
- Steel (S235JR) = 1;
Stainless steel approx. 0.7; Brass approx. 0.5; Aluminium approx. 0.5; Copper approx. 0.4
- Rated operating voltage range UB
- 8.2 VDC
- Current absorption
- in presence of metal ≤ 1 mA; in absence of metal ≥ 3 mA
- Switching frequency
- 2000 Hz
- Repeatability
- ≤ 3 %
- Protection circuit
- Inductive interference protection, protection against polarity reversal, short-circuit and overload proof
- Ambient temperature
- –25 °C … +60 °C
- Ex marking
- L II 1G Ex ia IIC T6 Ga,
L II 1D Ex ia IIIC T85°C Da
- Approvals
- IMQ 14 ATEX 001
IECEx IMQ 14.0001
f
- Weight
- 101 g

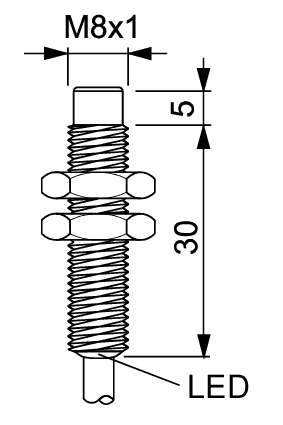

Dimensional drawing
Further drawings
Contact diagram
Switching behaviour
Non-flush mounting
Side by side mounting
