Product features
Ex zone 22
M30 x 1.5 thread
Non-flush mounting
Long life, no mechanical wear
Suitable for the food processing industry
Insensitive to soiling
With pre-wired cable
Technical data
General technical data
- Applied standards
- EN IEC 60079-0, EN 60079-31
- Degree of protection
- IP67 (IEC/EN 60529)
- Connection
- cable PVC, grey
- Cable cross-section
- 3 x 0.35 mm²
- Cable length
- 5 m
- Switching elements
- 1 NO contact, PNP, 3-wire
- Rated switching distance sn
- 15 mm
- Rated operating voltage range UB
- 10 … 30 VDC
- Rated operating voltage Ue
- 24 VDC
- Rated operating current Ie
- 200 mA
- No-load supply current I0
- < 15 mA
- Voltage drop at Ie
- < 1.8 V
- Switching frequency
- 300 Hz
- Repeatability
- ≤ 3 %
- Ambient temperature
- –25 °C … +60 °C
- Storage and shipping temperature
- –25 °C … +70 °C
- Ex marking
- L II 3D Ex tc IIIC T85°C Dc X

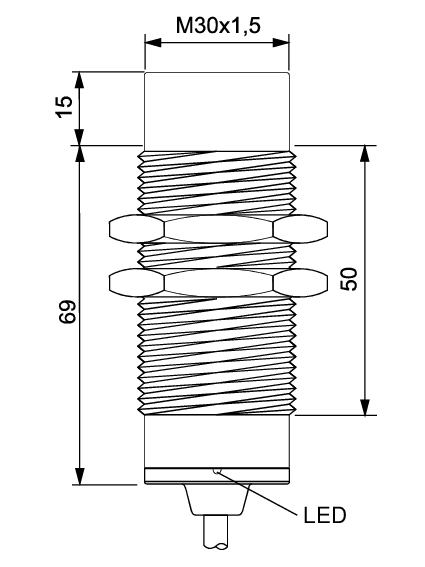

Dimensional drawing
Further drawings

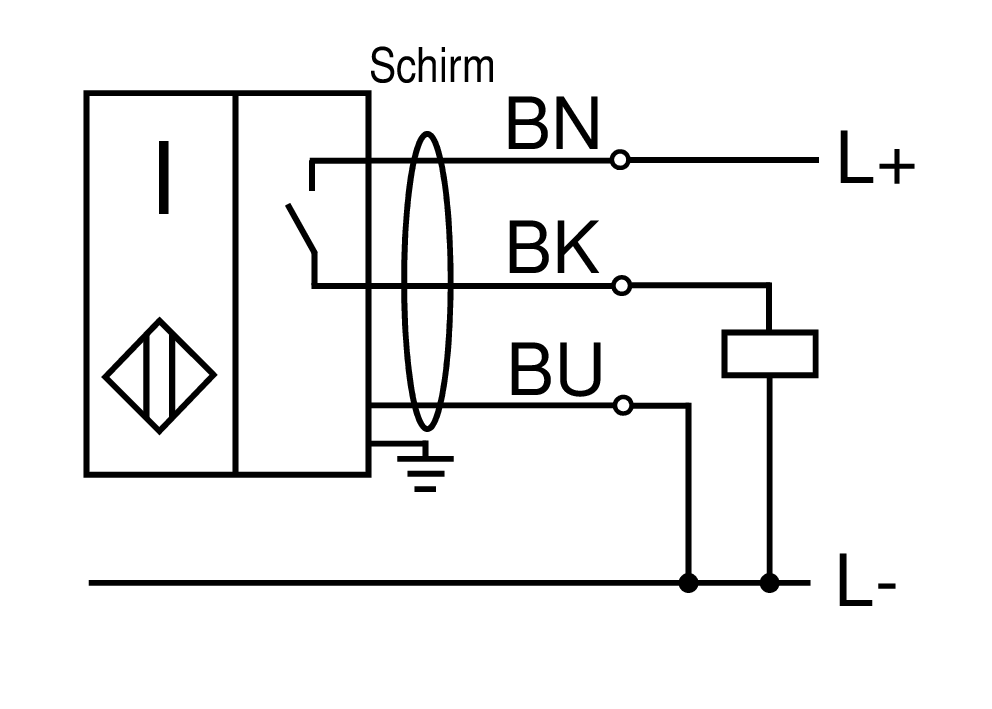

Contact diagram

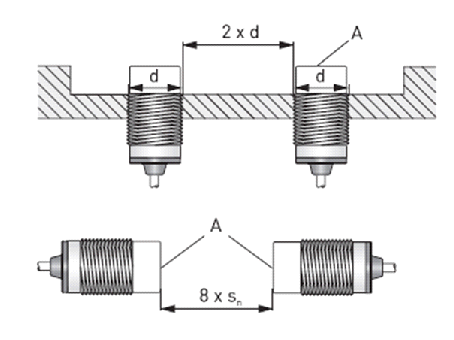

Non-flush mounting
