Product features
Ex zone 1 and 21
1-pedal type
Metal enclosure
Low pedal height
With pre-wired cable
Attention: Please state required international approvals with your order!
Technical data
General technical data
- Applied standards
- EN 60947-5-1, EN IEC 60079-0, EN 60079-1, EN 60079-31, EN ISO 13849-1
- Enclosure
- aluminium die-cast, powder-coated
- Cover
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Pedal
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Degree of protection
- IP65 (IEC/EN 60529)
- Connection
- cable H05VV-F
- Cable cross-section
- 3 x 0.75 mm² (incl. conductor ferrules)
- Cable length
- 3 m
- Contact material
- silver
- Switching system
- snap action
- Switching elements
- 1 change-over contact with single break, type C
- Switch insert
- 1 x ExM 14
- Utilisation category
- AC-15; DC-13
- Rated operating current/voltage Ie/Ue
- 5 A/250 VAC; 0.16 A/230 VDC
- Short-circuit protection
- 5 A gG/gN fuse
- Ambient temperature
- T6: –20 °C … +60 °C
- Mechanical life
- > 1 million operations
- Impact energy
- max. 7 J
- Ex marking
- L II 2G Ex d IIC T6 Gb,
L II 2D Ex tb IIIC T80 °C Db IP65
- Approvals
- PTB 11 ATEX 1002 X
- Weight
- 860 g
Dimensional drawing
Further drawings

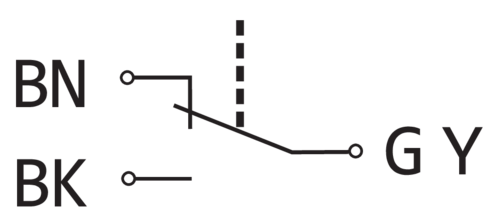

Contact diagram

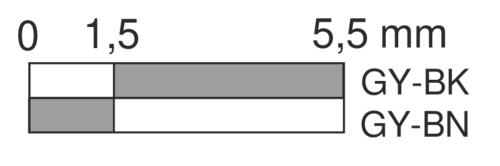

Switching diagram
