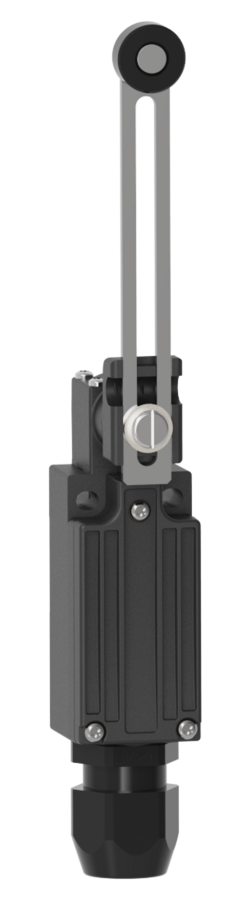

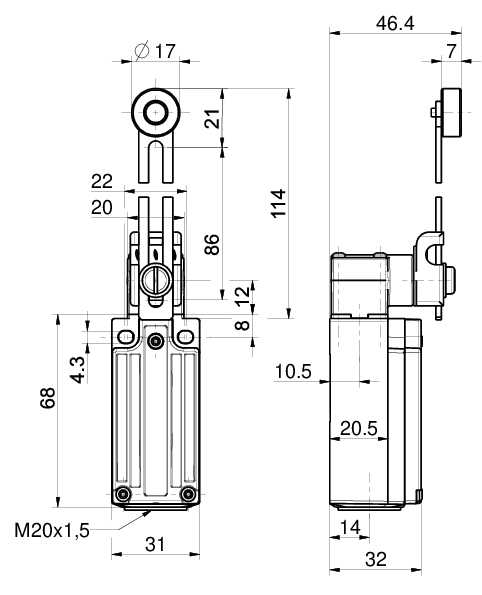

Ex position switch
Ex ES 97 DS-02-3G/D
Article no.: on request
This product is only available on request, please contact our sales team. contact usProduct features
Ex zone 2 and 22
Thermoplastic enclosure
High degree of protection IP66 / IP67
Mounting details to EN 50047
Wiring compartment
Double insulated X
Slow action
Actuator can be repositioned by 4 x 90°
Rocking lever can be repositioned by 10° steps
Actuator: Adjustable rocking lever DS
Notes
1 Ex"e" cable gland M20x1.5 included in delivery
Technical data
General technical data
Applied standards
EN IEC 60079-0, EN 60079-1, EN IEC 60079-7, EN 60079-31, EN 60947-5-1, EN ISO 13849-1, EN ISO 14119
Enclosure
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Cover
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Sealing
silicone
Tightening torque
cover screws: 0.4 … 0.5 Nm
Degree of protection
IP66 / IP67 (EN 60079-0 + IEC/EN 60529)
Contact material
Silver, nickel-plated
Switching system
slow action
Switching elements
2 NC contacts, type Zb
Connection
screw connection terminals
Cable cross-section
min. 0.75 mm² (AWG 18), max. 1.5 mm² (AWG 16), incl. conductor ferrules
Cable entry
M20 x 1.5; screwing depth max. 9 mm; use only Ex approved and certified cable glands with min. degree of protection IP66/IP67 and suitable for the specified ambient temperature range
Utilisation category
AC-15
Rated operating current/voltage Ie/Ue
max. 3 A or 6 A / max. 250 V
Degree of pollution
3
Mechanical life
1 million operations
Impact energy
max. 4 J
Temperature class
T6
Ambient temperature
–20 °C … +45 °C max. 6 A,
–20 °C … +60 °C max. 3 A
Short-circuit protection
3 A / 6 A gG/gN fuse
Ex marking
L II 3G Ex dc ec IIC T6 Gc X,
L II 3D Ex tc IIIC T80 °C Dc X
