Ex junction/ terminal box devices
Ex AD 85 e MK4 3xM20
Article no.: 1186653Old article no.: 6711100401
Product features
Ex zone 1 and 21
Polyester resin enclosure
Junction box, Ex "e" increased safety
Dimensions 85 x 85 x 55 mm
2 x cable gland, 1 x closing plug, 3 x nut included in delivery
Technical data
General technical data
Applied standards
EN IEC 60079-0, EN IEC 60079-7, EN 60079-11, EN 60079-31
Enclosure
polyester resin, glass-fibre reinforced
Tightening torque
cover screws: 1.4 Nm
Degree of protection
IP66 (IEC/EN 60529)
Connection
mantle terminals
Cable cross-section
1.5 … 4 mm²
Cable entry
3 x M20 x 1.5 (incl. 2 cable glands)
Clamping range
4 … 13 mm
Rated operating current Ie
see table
Rated operating voltage Ue
400 V
Temperature class
T6 / T5
Ambient temperature
T6: –40 °C … +40 °C,
T5: –40 °C … +55 °C
Impact energy
max. 7 J
Ex marking
L II 2G Ex e II T6, T5
L II 2D Ex tD A21 IP66 T80 °C, T95 °C
Approvals
PTB 10 ATEX 1019 X
Weight
310 g
Dimensions
Drawings

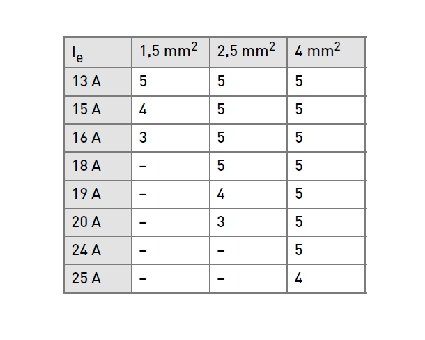

Max. number of loaded terminals at Ie max for T6 or T5
Ie Rated operating current
