Ex junction/ terminal box devices
Ex AD 115 e MK8 6xM20
Article no.: 1186658Old article no.: 6712100807
contact usProduct features
Ex zone 1 and 21
Polyester resin enclosure
Junction box, Ex "e" increased safety

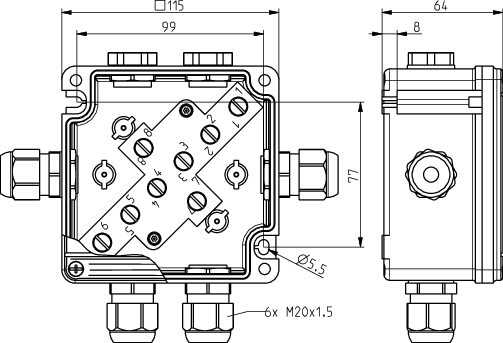

Dimensions 115 x 115 x 64 mm
4 x cable gland, 2 x closing plug, 6 x nut included in delivery
Technical data
General technical data
Applied standards
EN IEC 60079-0, EN IEC 60079-7, EN 60079-18, EN 60079-31
Enclosure
polyester resin, glass-fibre reinforced
Tightening torque
cover screws: 0.3 … 0.8 Nm
Degree of protection
IP66 (IEC/EN 60529)
Connection
mantle terminals
Cable cross-section
max. 6 mm² (incl. conductor ferrules), single-wire
Cable entry
6 x M20 x 1.5 (incl. 4 cable glands)
Clamping range
6 … 13 mm

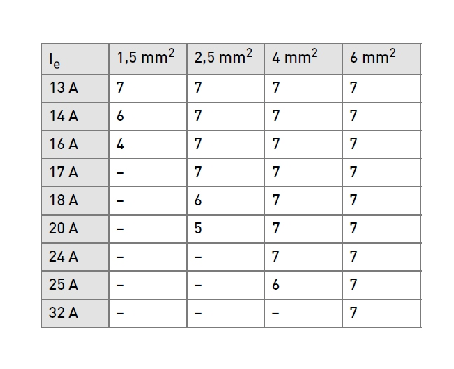

Rated operating current/voltage Ie/Ue
32 A / 690 VAC
Temperature class
T6 / T5
Ambient temperature
T6: –40 °C … +40 °C,
T5: –40 °C … +55 °C
–50 °C with special cable glands
Impact energy
max. 7 J
Ex marking
L II 2G Ex em II T6, T5
L II 2D Ex tD A21 IP66 T80 °C, T95 °C
Approvals
PTB 10 ATEX 1019 X
Weight
508 g
