Belt alignment switch
ES 98 SR-11U -40°C IP66 Extreme
Article no.: 1190326Old article no.: 9102319001
Product features
Cold-resistant down to -40 °C
High degree of protection IP66
Metal enclosure
Design to EN 50041
2 contacts
Adjustable-length stainless steel rod lever with nylon roller
Belt alignment lever adjustable in 13° steps using a self-locking mechanism
Attention: Please state required international approvals with your order!
Technical data
General technical data
- Applied standards
- EN ISO 13849-1, EN 60947-5-1
- Enclosure
- aluminium die-cast, corrosion-resistant, powder-coated, anthracite grey, similar to RAL 7016
- Cover
- stainless steel 1.4401, powder-coated, signal yellow, similar to RAL 1003
- Sealing
- silicone
- Degree of protection
- IP66 (IEC/EN 60529)
- Contact material
- silver
- Switching system
- slow action
- Switching elements
- 1 NC/1 NO contact with contact overlapping, type Zb
- Connection
- screw connection terminals
- Cable cross-section
- max. 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 1 x M20 x 1.5
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated insulation voltage Ui
- 250 V
- Conventional thermal current Ithe
- 6 A
- Rated operating current/voltage Ie/Ue
- 6 A/250 VAC; 0.25 A/230 VDC
- Utilisation category
- AC-15; DC-13
- Short-circuit protection
- 6 A gG fuse
- Ambient temperature
- –40 °C … +60 °C
- Mechanical life
- > 1 million operations
- Operation cycles
- max. 1800/h
- Repeat accuracy of switching points
- ± 0.1 mm
- Approvals
- <
- Weight
- 480 g
Dimensional drawing
Further drawings
Contact diagram

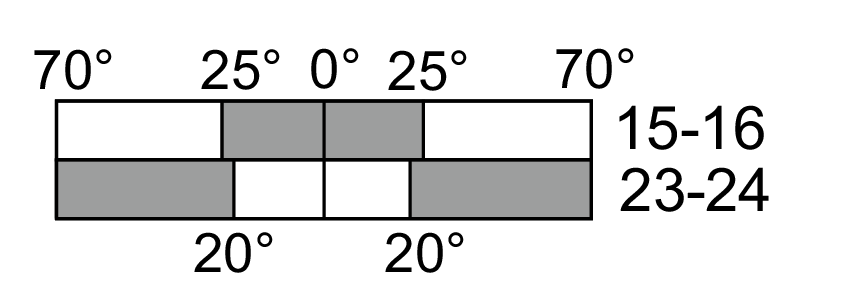

Switching diagram
