Product features
Metal enclosure
2 contacts
Design to EN 50041
Wiring compartment
Adjustable-length stainless steel rod lever with nylon roller
Belt alignment lever adjustable in 13° steps using a self-locking mechanism
For light- and medium-heavy applications
Technical data
General technical data
- Applied standards
- EN ISO 13849-1, EN 60947-5-1
- Enclosure
- aluminium die-cast, powder-coated
- Degree of protection
- IP67 (IEC/EN 60529)
- B10d (10 % load)
- 2 million
- TM
- max. 20 years
- Contact material
- silver
- Switching system
- slow action
- Switching elements
- 2 NC contacts, type Zb
- Connection
- screw connection terminals
- Cable cross-section
- max. 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 1 x M20 x 1.5 (for cable glands only)
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated insulation voltage Ui
- 250 V
- Conventional thermal current Ithe
- 6 A
- Rated operating current/voltage Ie/Ue
- 6 A/250 VAC; 0.25 A/230 VDC
- Utilisation category
- AC-15; DC-13
- Short-circuit protection
- 6 A gG fuse
- Mechanical life
- > 1 million operations
- Operation cycles
- max. 1800/h
- Ambient temperature
- –20 °C … +60 °C
- Approvals
- da
- Weight
- 400 g
Dimensional drawing
Further drawings
Switching diagram

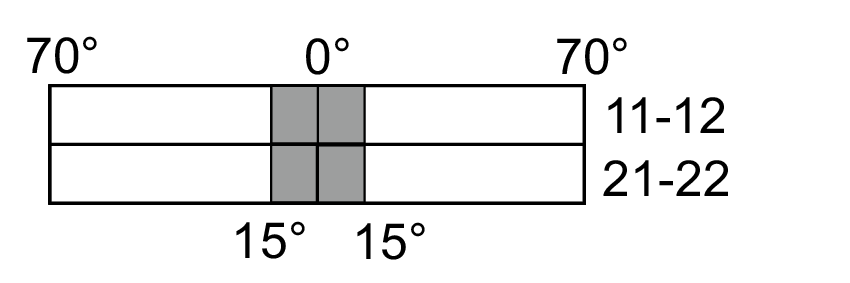

Contact diagram
